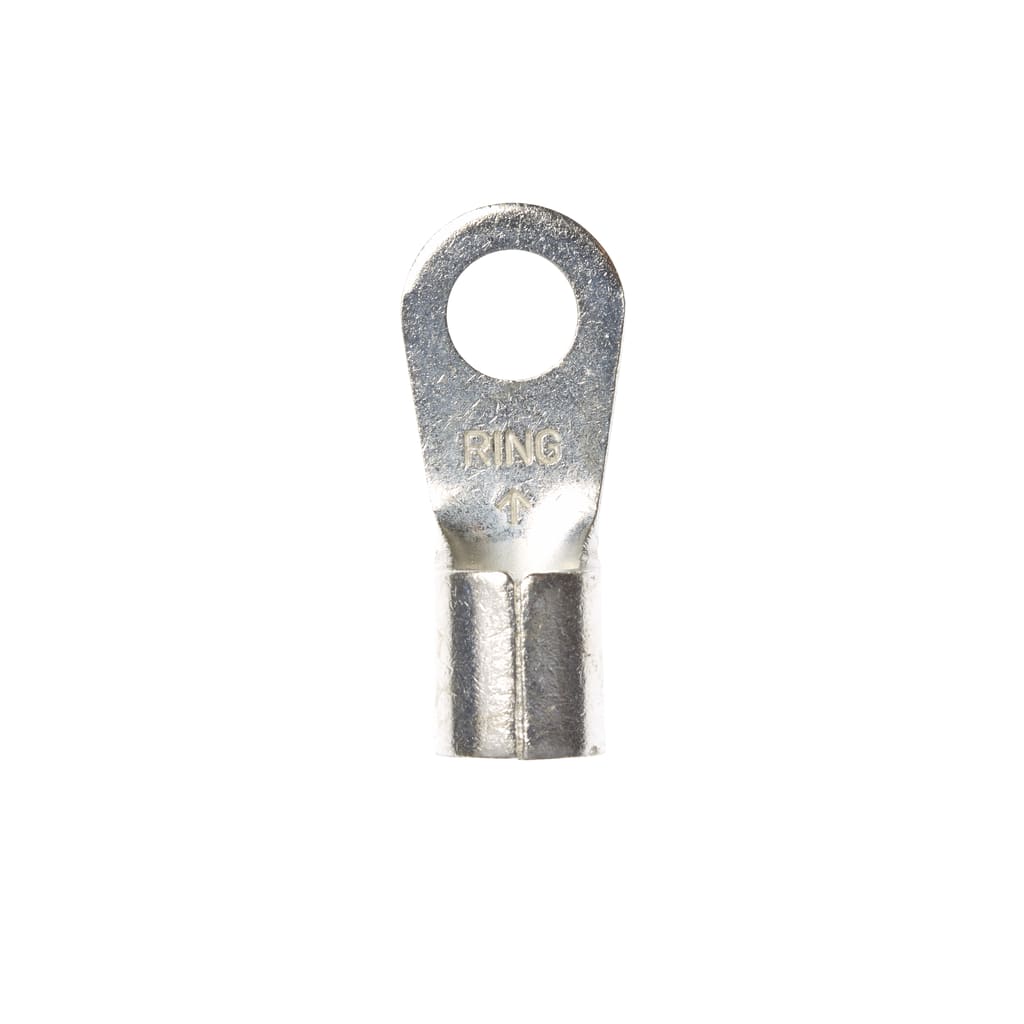

3M - 3M Industrial Safety M6-14R/SX 6 AWG Non-Insulated Brazed Seam Ring Tongue Terminal

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 051128586983

  • Catalog Number - 7010351128

  • Conductor Size - 6 AWG

  • ERP_productname - MMM M6-14R/SX RING NON-INSULATED, 10/BOTTLE

  • Family Brand Name - 3M

Packaging

  • 1 ea

EAN

10051128586980

Part #

140124

Catalog #

7010351128

Commercial reference

7010351128

12-Digit UPC:

051128586983

Catalog Number:

7010351128

Conductor Size:

6 AWG

ERP_productname:

MMM M6-14R/SX RING NON-INSULATED, 10/BOTTLE

Family Brand Name:

3M

Sub Brand:

Scotchlok

Type:

Ring

Widths:

0.47 in

SoneparProductId:

SKU_US_32117117

3M™ Scotchlok™ Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. : Stud size 1/4 in; Beveled mouth offers easy insertion of wires; Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; 600V-rated for building wire and 1000V for signs, fixtures or luminaires; Standard-style ring tongue fits around the stud; Accommodates wire size 6 AWG; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; 10/carton, 100/case; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
