3M - 3M M14-10FX 100/Bottle Non-Insulated Fork
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128586648
Catalog Number - 7010399921
Conductor Size - 14 AWG
Country of Origin - USA
ERP_productname - MMM M14-10FX FORK NON-INSULATED, 100/BOTTLE
Packaging
1 ea
EAN
00051128586648
Part #
135408
Catalog #
7010399921
Commercial reference
7010399921
12-Digit UPC:
051128586648
Catalog Number:
7010399921
Conductor Size:
14 AWG
Country of Origin:
USA
ERP_productname:
MMM M14-10FX FORK NON-INSULATED, 100/BOTTLE
Family Brand Name:
3M
Length:
0.7 Inch
Overall Length:
0.7 in
Sub Brand:
Scotchlok
Type:
Fork
Widths:
0.34 in
SoneparProductId:
SKU_US_26363570

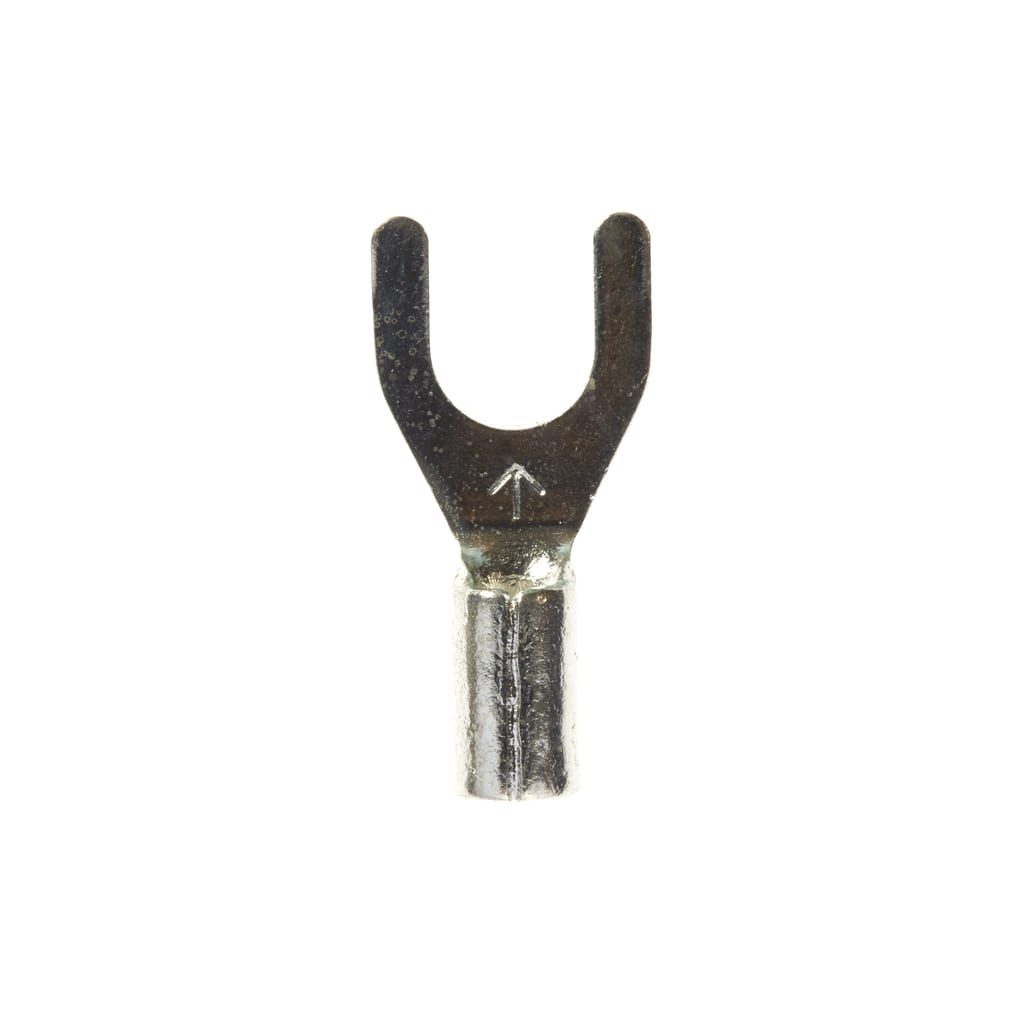

3M™ Scotchlok™ Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; Beveled mouth offers easy insertion of wires; Wider tongue design for use on free-standing studs; Electrolytic copper construction offers good conductivity; Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals; 600V-rated for building wire and 1000V for signs, fixtures or luminaires
