3M - 3M MH18-10FLX 25/Bottle Heatshrink Locking Fork
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589151
Catalog Number - 7010398218
Conductor Size - 22-18 AWG
Country of Origin - USA
ERP_productname - MMM MH18-10FLX LOCKING FORK HEATSHRINK, 25/BOTTLE
Packaging
1 ea
EAN
00051128589151
Part #
135588
Catalog #
7010398218
Commercial reference
7010398218
12-Digit UPC:
051128589151
Catalog Number:
7010398218
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MH18-10FLX LOCKING FORK HEATSHRINK, 25/BOTTLE
Family Brand Name:
3M
Length:
1 Inch
Material:
Heat Shrink
Overall Length:
1.0 in
Sub Brand:
Scotchlok™
Type:
Fork
Widths:
0.32 in
SoneparProductId:
SKU_US_26782908

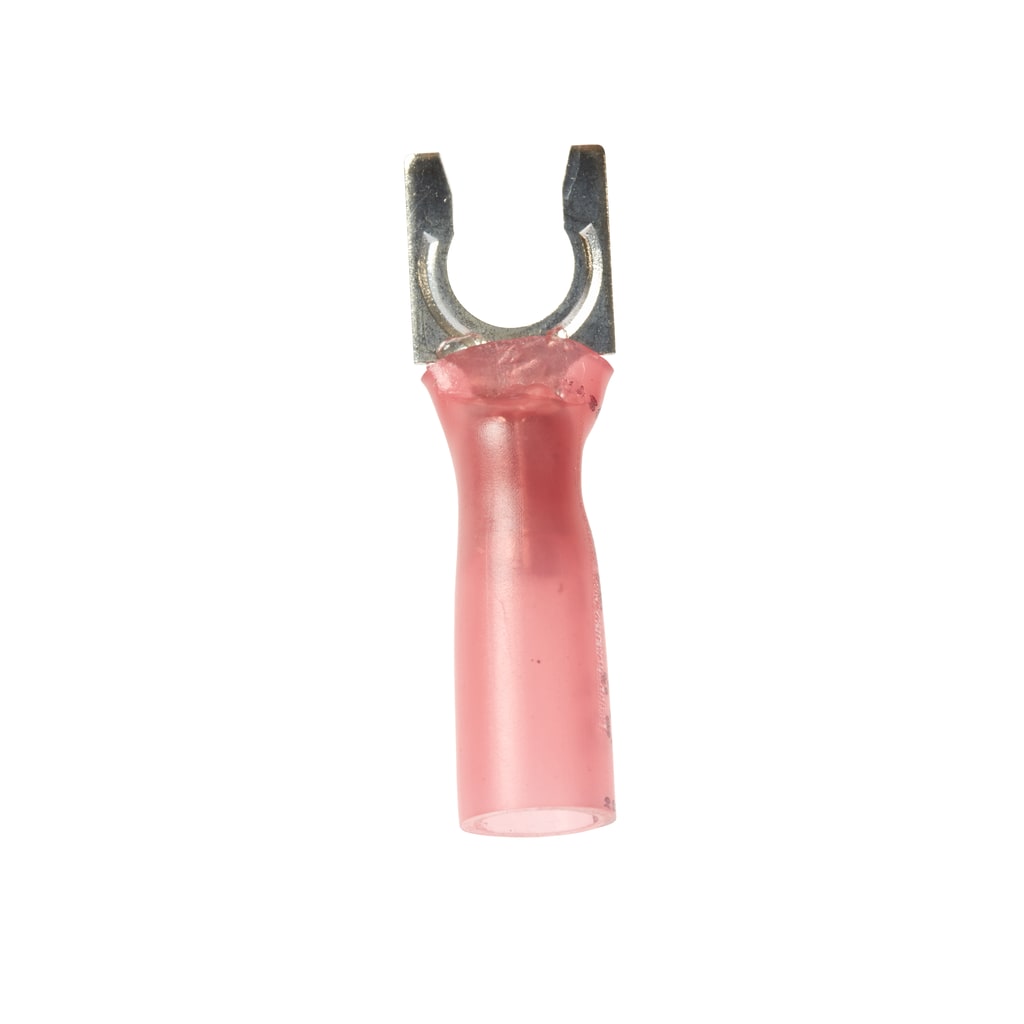

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt; Spring-like tongue firmly fits around the stud; Electrolytic copper construction offers good conductivity; Withstands a maximum temperature of 221 degrees F (105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires
