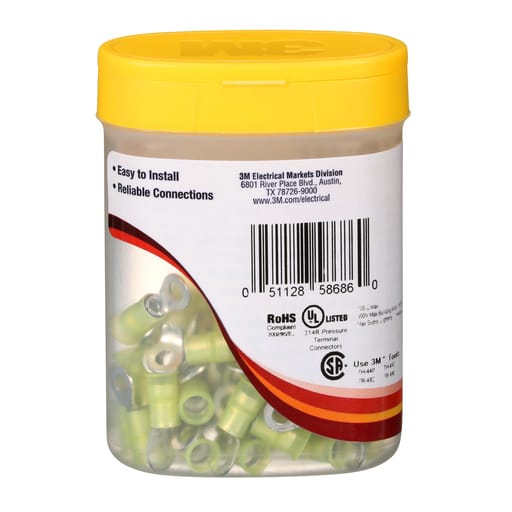

3M - 3M MNG10-10RX 50/Bottle Nylon Insulated Ring
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128586860
Catalog Number - 7000133297
Color - Yellow
Conductor Size - 10 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128586860
Part #
135658
Catalog #
7000133297
Commercial reference
7000133297
12-Digit UPC:
051128586860
Catalog Number:
7000133297
Color:
Yellow
Conductor Size:
10 AWG
Country of Origin:
USA
ERP_productname:
MMM MNG10-10RX RING NYLON INSULATED, 50/BOTTLE
Family Brand Name:
3M
Length:
1.03 Inch
Material:
Nylon
Overall Length:
1.03 in
Sub Brand:
Scotchlok™
Type:
Bell End
Widths:
0.38 in
SoneparProductId:
SKU_US_26784612

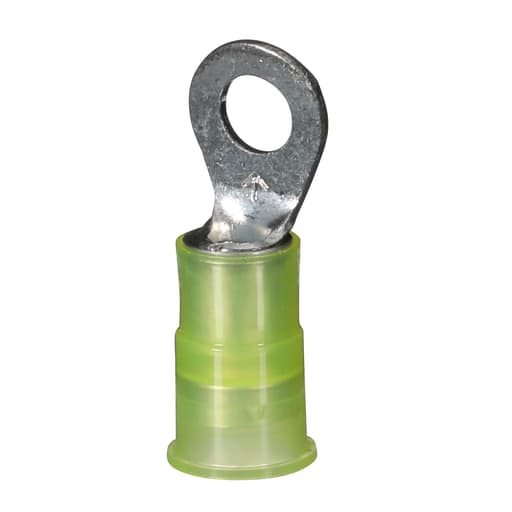

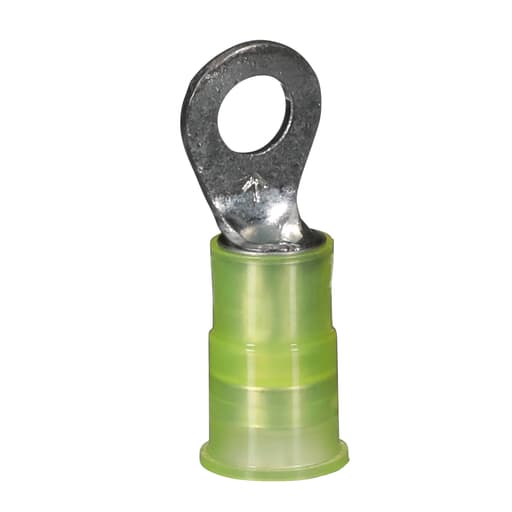

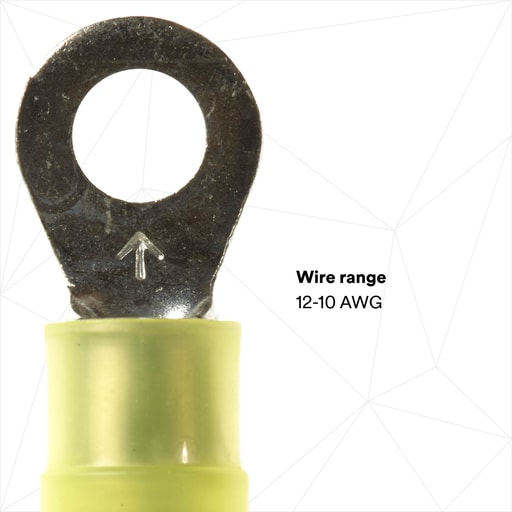

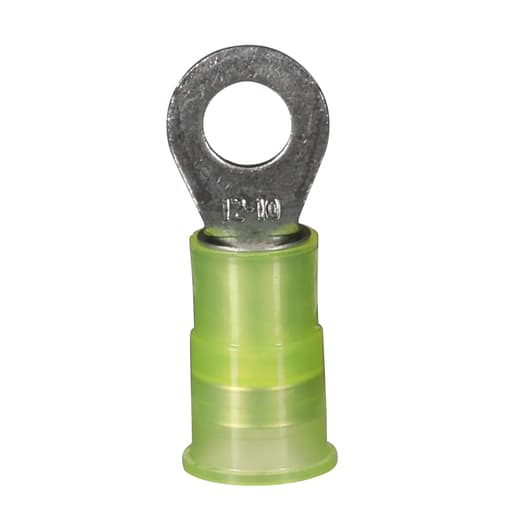

3M™ Scotchlok™ Ring Tongue with nylon insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified. Features: WIRE RANGE: 12-10 AWG; MAX. TEMPERATURE RATING: 221 ±F (105 ±C); INSULATOR MATERIAL: Nylon-insulated; TERMINAL MATERIAL: ETP copper; TERMINAL PLATING: Features tin plating; UL LISTED AND CSA CERTIFIED: For use on stranded copper (AWG) wire only
