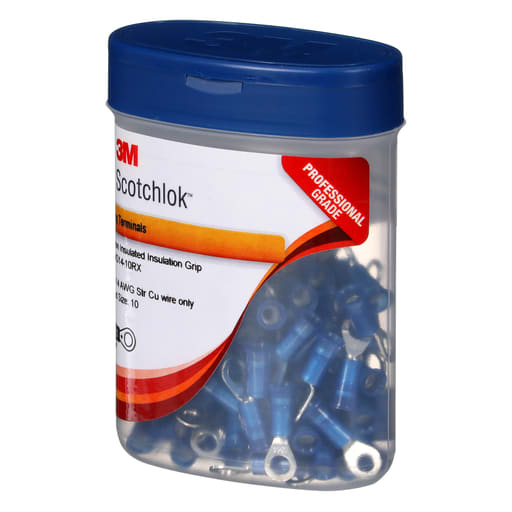

3M - 3M MNG14-10RX 100/Bottle Nylon Insulated Ring
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589656
Catalog Number - 7000133416
Color - Blue
Conductor Size - 16-14 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128589656
Part #
104370
Catalog #
7000133416
Commercial reference
7000133416
12-Digit UPC:
051128589656
Catalog Number:
7000133416
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
USA
ERP_productname:
MMM MNG14-10RX NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMINAL
Family Brand Name:
3M
Length:
0.91 Inch
Material:
Nylon
Overall Length:
0.91 in
Sub Brand:
Scotchlok™
Type:
Bell End
Widths:
0.33 in
SoneparProductId:
SKU_US_26606170

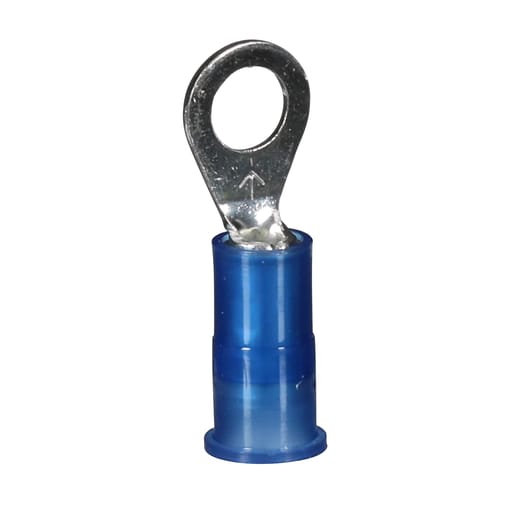

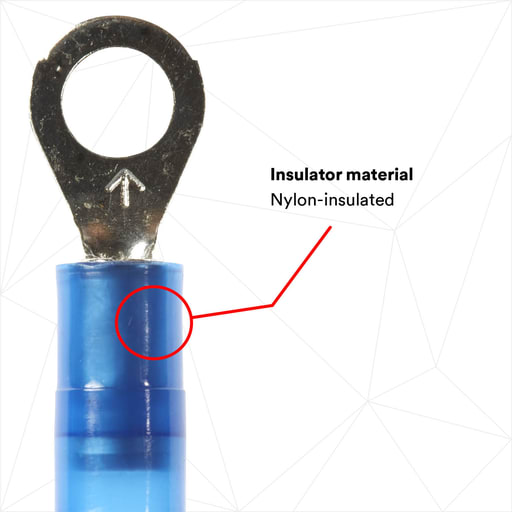

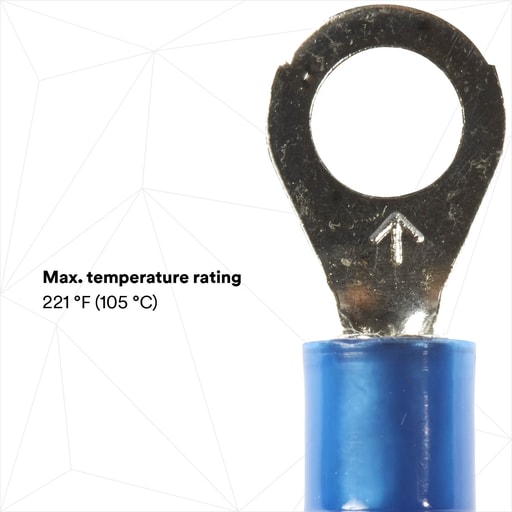

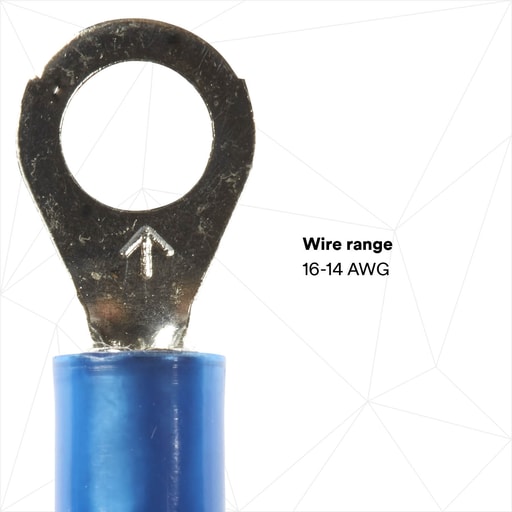

3M™ Scotchlok™ Ring Tongue with nylon insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified. Features: WIRE RANGE: 16-14 AWG; MAX. TEMPERATURE RATING: 221 ±F (105 ±C); INSULATOR MATERIAL: Nylon-insulated; TERMINAL MATERIAL: ETP copper; TERMINAL PLATING: Features tin plating; UL LISTED AND CSA CERTIFIED: For use on stranded copper (AWG) wire only
