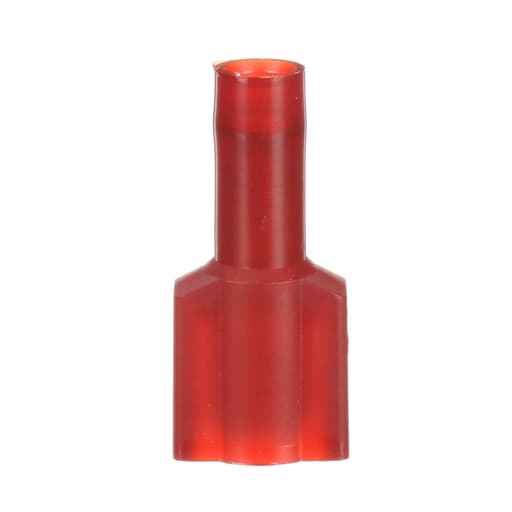

3M - 3M MNG18-250DMIX 50/Bottle Nylon Insulated Male Disconnect

CopyCopy
3M - 3M MNG18-250DMIX 50/Bottle Nylon Insulated Male Disconnect

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 051128588031

  • Catalog Number - 7000133363

  • Color - Red

  • Conductor Size - 22-18 AWG

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00051128588031

Part #

203541

Catalog #

7000133363

Commercial reference

7000133363

12-Digit UPC:

051128588031

Catalog Number:

7000133363

Color:

Red

Conductor Size:

22-18 AWG

Country of Origin:

USA

ERP_productname:

MMM MNG18-250DMIX FULLY NYLON INSULATED W/INSULATION GRIP MALE DISCONNECT

Family Brand Name:

Scotchlok

Length:

0.95 Inch

Material:

Plastic

Overall Length:

0.95 in

Sub Brand:

Scotchlok

Type:

Disconnect

Widths:

0.44 in

SoneparProductId:

SKU_US_26886656

3M™ Scotchlok™ Male Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the male part over the female tab. This disconnect offers superior holding force while allowing for quick and easy disconnect. Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). 3M™ Scotchlok™ Male Disconnects are UL Recognized and CSA certified. Features: This male disconnect terminal offers excellent holding force; Allows for quick and easy disconnect of wires; Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); Rated 600V for building wire and 1000V for signs, fixtures or luminaires; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
