3M - 3M MNHU14-250DMIX 25/Bottle Heatshrink Nylon Insulated Male Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589083
Catalog Number - 7000133392
Color - Blue
Conductor Size - 16-14 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128589083
Part #
161987
Catalog #
7000133392
Commercial reference
7000133392
12-Digit UPC:
051128589083
Catalog Number:
7000133392
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
USA
ERP_productname:
MMM MNHU14-250DMIX MALE DISCONNECT HEATSHRINK NYLON INSULATED, 25/BOTTLE
Family Brand Name:
Scotchlok
Length:
1.2 Inch
Material:
Plastic
Overall Length:
1.2 in
Sub Brand:
Scotchlok
Type:
Disconnect
Widths:
0.44 in
SoneparProductId:
SKU_US_26787398

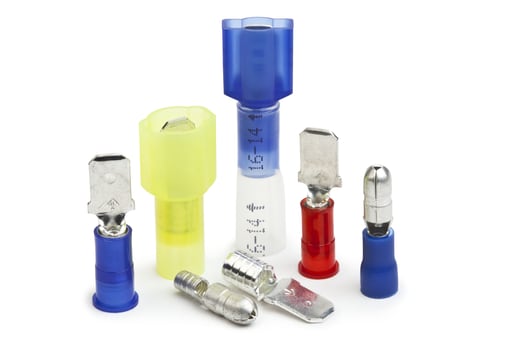

3M™ Scotchlok™ Male Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the male part over the female tab. This disconnect offers superior holding force while allowing for quick and easy disconnect. Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). 3M™ Scotchlok™ Male Disconnects are UL Recognized and CSA certified. Features: This male disconnect terminal offers excellent holding force; When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt; Mates with 0.25-in wide female tab; Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating; Withstands a maximum temperature of 221 degrees F (105 degrees C); Rated 600V for building wire and 1000V for signs, fixtures or luminaires
