3M - 3M MNHU18-250DMIX 25/Bottle Heatshrink Nylon Insulated Male Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589175
Catalog Number - 7000133397
Color - Red
Conductor Size - 22-18 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128589175
Part #
161994
Catalog #
7000133397
Commercial reference
7000133397
12-Digit UPC:
051128589175
Catalog Number:
7000133397
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MNHU18-250DMIX MALE DISCONNECT HEATSHRINK NYLON INSULATED, 25/BOTTLE
Family Brand Name:
Scotchlok
Length:
1.2 Inch
Material:
Plastic
Overall Length:
1.2 in
Sub Brand:
Scotchlok
Type:
Disconnect
Widths:
0.44 in
SoneparProductId:
SKU_US_26888317

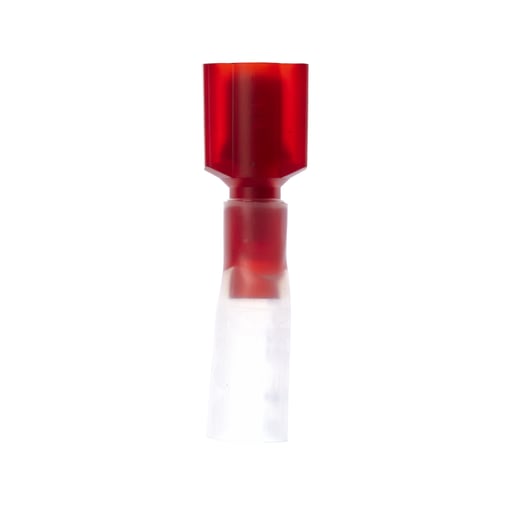

3M™ Scotchlok™ Male Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the male part over the female tab. This disconnect offers superior holding force while allowing for quick and easy disconnect. Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Scotchlok™ Male Disconnects are UL Recognized and CSA certified. Features: This male disconnect terminal offers excellent holding force; When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt; Mates with 0.25-in wide female tab; Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating; Withstands a maximum temperature of 221 degrees F (105 degrees C); Rated 600V for building wire and 1000V for signs, fixtures or luminaires
