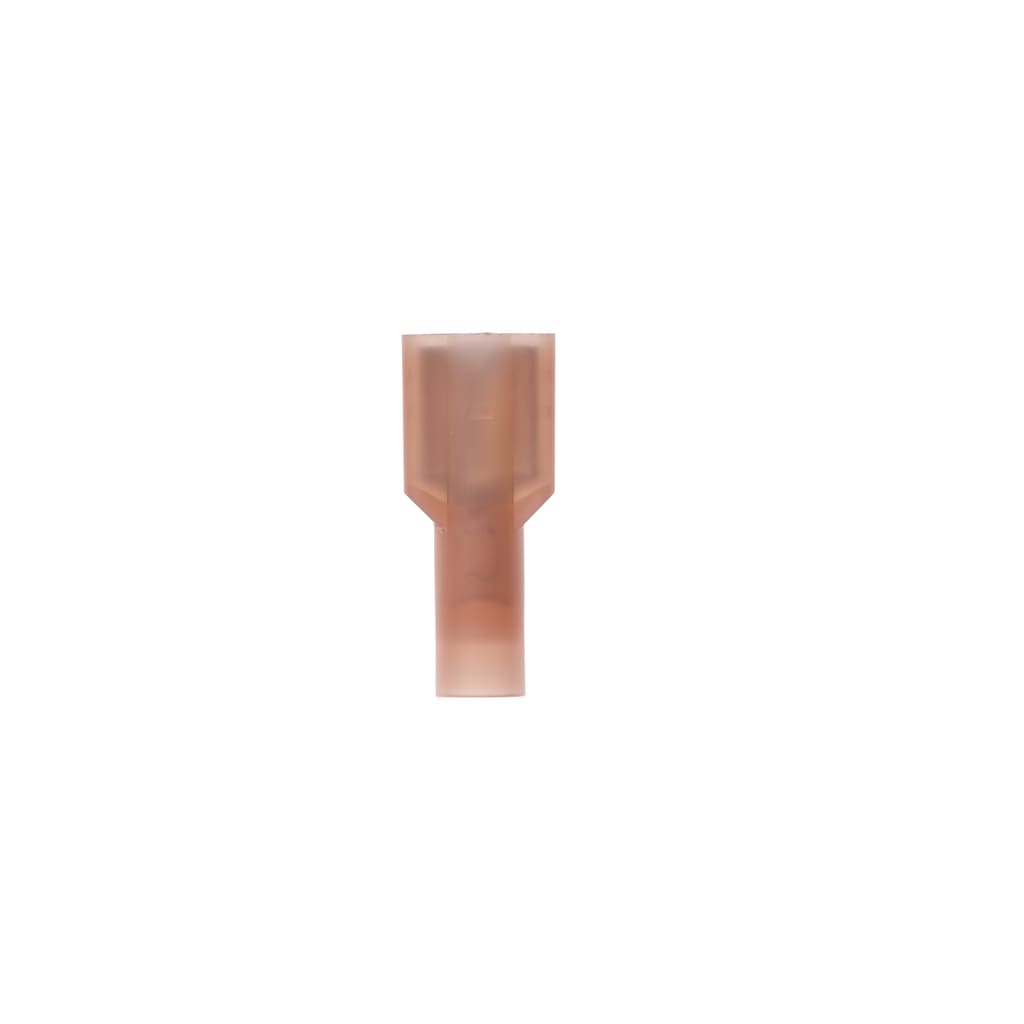

3M - 3M MNI18-250DFIX 100/Bottle Nylon Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128589335
Catalog Number - 7100165291
Conductor Size - 22-18 AWG
Country of Origin - USA
ERP_productname - MMM MNI18-250DFIX FULLY NYLON INS BUTTED SEAM FEMALE DISC W/INTERLOCKING BARREL
Packaging
1 ea
EAN
00051128589335
Part #
203602
Catalog #
7100165291
Commercial reference
7100165291
12-Digit UPC:
051128589335
Catalog Number:
7100165291
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MNI18-250DFIX FULLY NYLON INS BUTTED SEAM FEMALE DISC W/INTERLOCKING BARREL
Family Brand Name:
3M
Length:
0.91 Inch
Material:
Nylon
Overall Length:
0.91 in
Sub Brand:
Scotchlok
Type:
Disconnect
SoneparProductId:
SKU_US_29318741
3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. Features: Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires; Dents and rolled edges of this female disconnect terminal offer excellent holding force; Allows for quick and easy disconnect of wires; Mates with 0.25-in wide male tab; Made of durable brass for good conductivity and has corrosion-resistant tin plating; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
