3M - 3M MV10-516R/SX Vinyl Insulated Ring (50/Bottle)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128587607
Catalog Number - 7000133339
Color - Yellow
Conductor Size - 12-10 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128587607
Part #
104647
Catalog #
7000133339
Commercial reference
7000133339
12-Digit UPC:
051128587607
Catalog Number:
7000133339
Color:
Yellow
Conductor Size:
12-10 AWG
Country of Origin:
USA
ERP_productname:
MMM MV10-516R/SX VINYL INSULATED BRAZED SEAM RING TONGUE TERMINAL
Family Brand Name:
3M
Length:
1.26 Inch
Material:
PVC
Overall Length:
1.26 in
Sub Brand:
Scotchlok™
Type:
Bell End
Widths:
0.53 in
SoneparProductId:
SKU_US_26786039

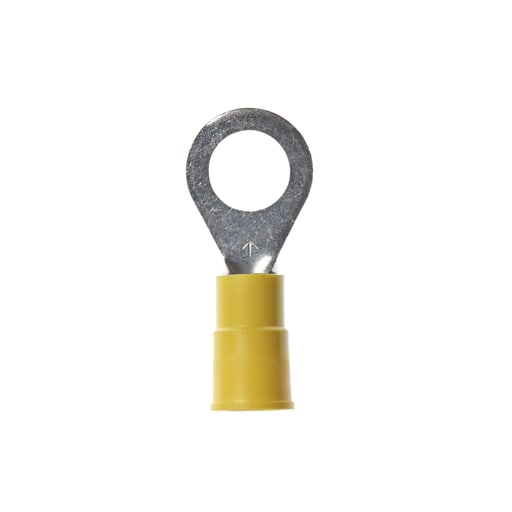

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
