3M - 3M MV18-10R/LX 100/Bottle Vinyl Insulated Ring
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128587324
Catalog Number - 7000133316
Color - Red
Conductor Size - 22-18 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128587324
Part #
135878
Catalog #
7000133316
Commercial reference
7000133316
12-Digit UPC:
051128587324
Catalog Number:
7000133316
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MV18-10R/LX RING VINYL INSULATED, 100/BOTTLE
Family Brand Name:
3M
Finish:
Tin Plated
Length:
0.93 Inch
Material:
PVC
Overall Length:
0.93 in
Sub Brand:
Scotchlok™
Type:
Short Sleeve, Standard
Voltage:
600 Volt
Widths:
0.31 in
SoneparProductId:
SKU_US_25335893

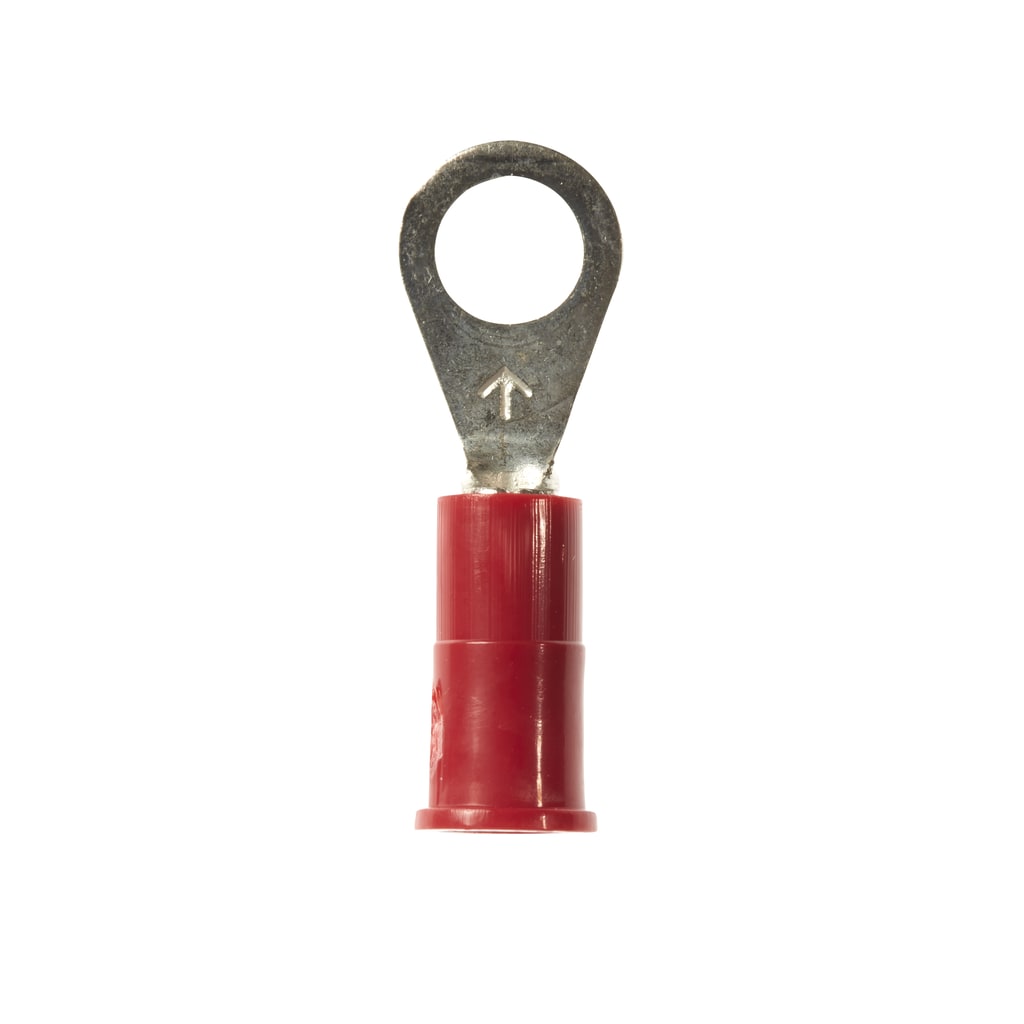

3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
