3M - 3M MV18-6FLX 100/Bottle Vinyl Insulated Locking Fork
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128588468
Catalog Number - 7010320679
Conductor Size - 18 AWG
Country of Origin - USA
ERP_productname - MMM MV18-6FLX LOCKING FORK VINYL INSULATED, 100/BOTTLE
Packaging
1 ea
EAN
00051128588468
Part #
135896
Catalog #
7010320679
Commercial reference
7010320679
12-Digit UPC:
051128588468
Catalog Number:
7010320679
Conductor Size:
18 AWG
Country of Origin:
USA
ERP_productname:
MMM MV18-6FLX LOCKING FORK VINYL INSULATED, 100/BOTTLE
Family Brand Name:
3M
Length:
0.88 Inch
Material:
PVC
Overall Length:
0.88 in
Sub Brand:
Scotchlok™
Type:
Fork
Widths:
0.25 in
SoneparProductId:
SKU_US_27178011

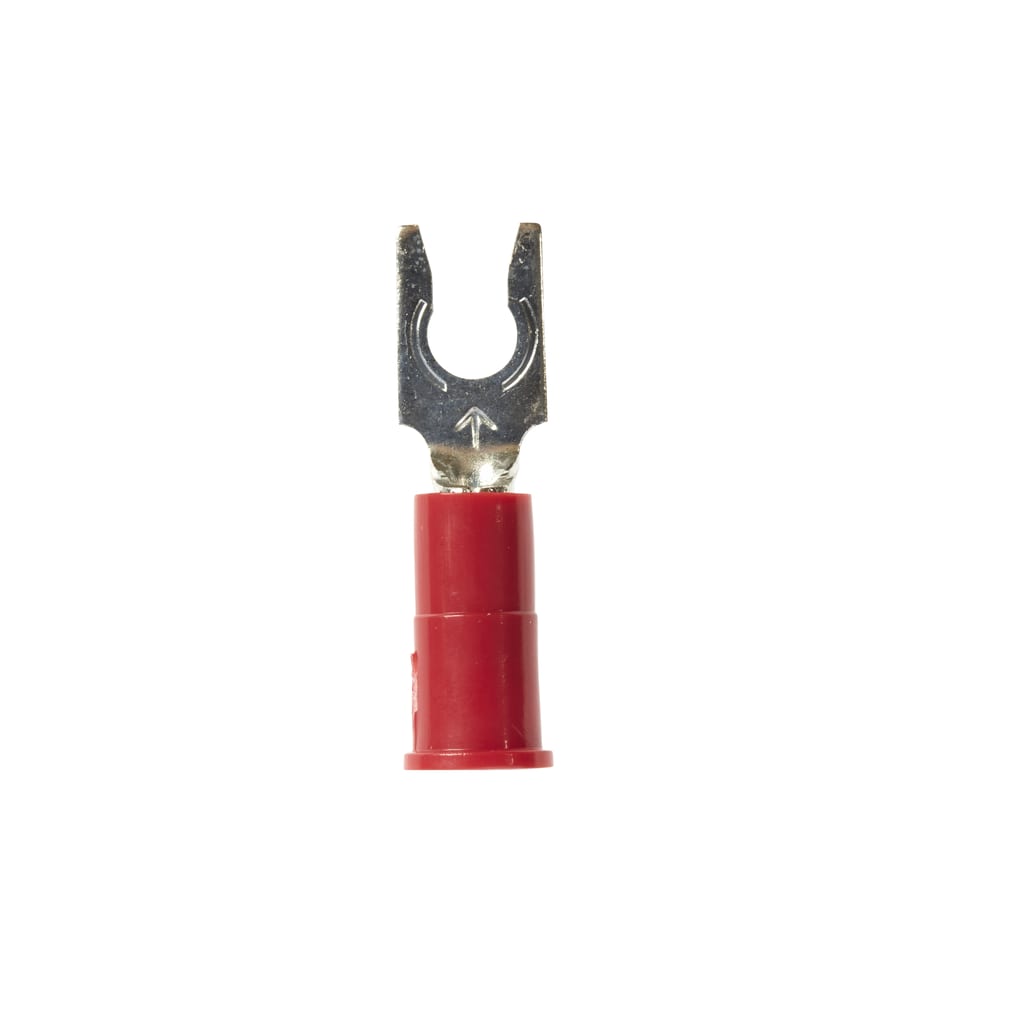

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance; Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Spring-like tongue firmly fits around the stud; Electrolytic copper construction offers good conductivity; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires
