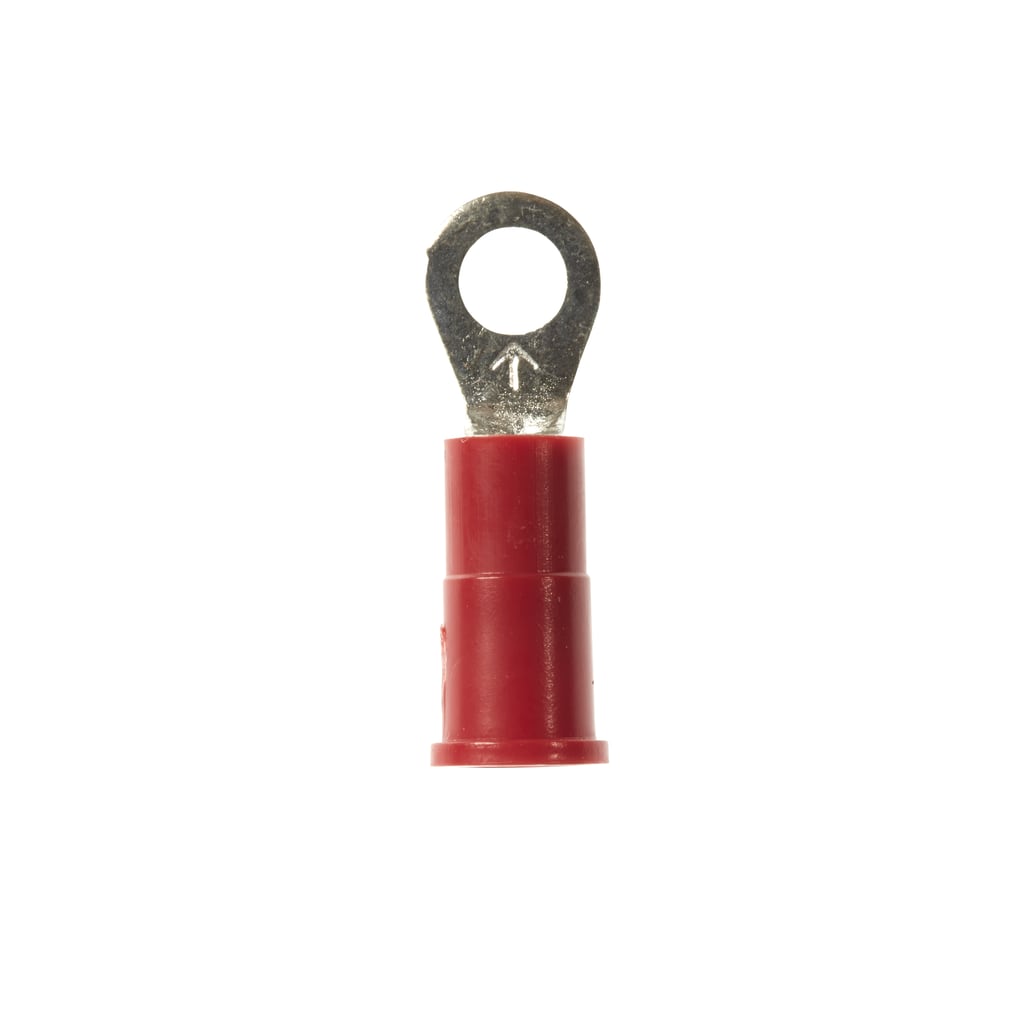

3M - 3M MV18-6R/SX 100/Bottle Vinyl Insulated Ring
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128587300
Catalog Number - 7000133314
Color - Red
Conductor Size - 22-18 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128587300
Part #
104130
Catalog #
7000133314
Commercial reference
7000133314
12-Digit UPC:
051128587300
Catalog Number:
7000133314
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
MMM MV18-6R/SX 22-18 INS RING TERM
Family Brand Name:
3M
Finish:
Tin Plated
Length:
0.8 Inch
Material:
PVC
Overall Length:
0.8 in
Sub Brand:
Scotchlok™
Type:
Short Sleeve, Standard
Voltage:
600 Volt
Widths:
0.25 in
SoneparProductId:
SKU_US_26364137
3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires; UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
