3M - 3M MVI14-250DFX 100/Bottle Vinyl Insulated Female Disconnect

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 051128589380

  • Catalog Number - 7100165293

  • Conductor Size - 16-14 AWG

  • Country of Origin - USA

  • ERP_productname - 3M MVI14-250DFX (7100165293) SCOTCHLOK VINYL INSULATED INTERLOCK BARREL FEMALE DISCONNECTS

Packaging

  • 1 ea

EAN

00051128589380

Part #

104757

Catalog #

7100165293

Commercial reference

7100165293

12-Digit UPC:

051128589380

Catalog Number:

7100165293

Conductor Size:

16-14 AWG

Country of Origin:

USA

ERP_productname:

3M MVI14-250DFX (7100165293) SCOTCHLOK VINYL INSULATED INTERLOCK BARREL FEMALE DISCONNECTS

Family Brand Name:

3M

Length:

0.83 Inch

Material:

PVC

Overall Length:

0.83 in

Sub Brand:

Scotchlok™

Type:

Disconnect

SoneparProductId:

SKU_US_26406048

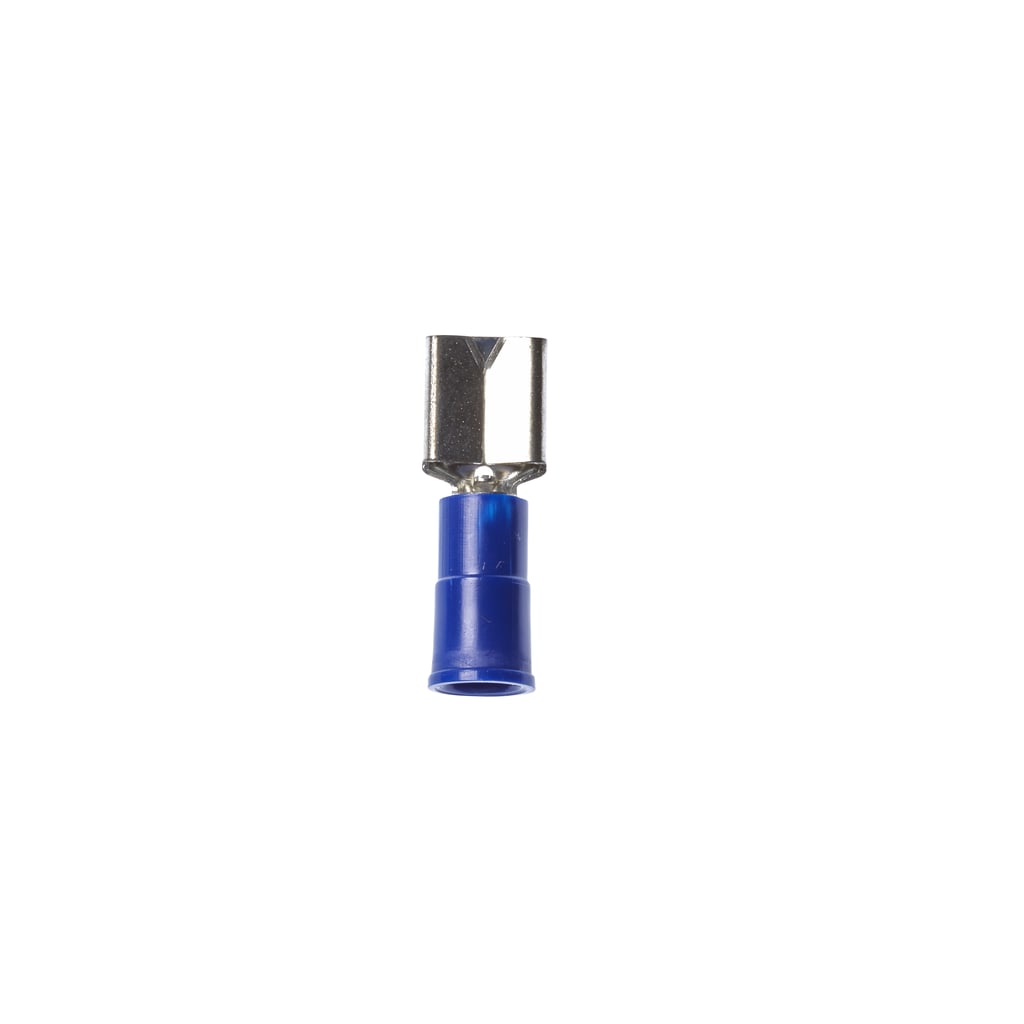

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. Features: Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Dents and rolled edges of this female disconnect terminal offer excellent holding force; Allows for quick and easy disconnect of wires; Mates with 0.25-in wide male tab; Made of durable brass for good conductivity and has corrosion-resistant tin plating; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
