3M - 3M MVU14-250DMFX-A Piggy Back 100/Bottle Male Female Vinyl Insulated Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128588727
Catalog Number - 7100165278
Conductor Size - 14 AWG
Country of Origin - Taiwan
ERP_productname - MMM MVU14-250DMFX-A PIGGY-BACK DISCONNECT MALE FEMALE VINYL INSULATED, 100/BOTTLE
Packaging
1 ea
EAN
00051128588727
Part #
140242
Catalog #
7100165278
Commercial reference
7100165278
12-Digit UPC:
051128588727
Catalog Number:
7100165278
Conductor Size:
14 AWG
Country of Origin:
Taiwan
ERP_productname:
MMM MVU14-250DMFX-A PIGGY-BACK DISCONNECT MALE FEMALE VINYL INSULATED, 100/BOTTLE
Family Brand Name:
3M
Length:
0.87 Inch
Material:
PVC
Overall Length:
0.87 in
Sub Brand:
Scotchlok
Type:
Disconnect
SoneparProductId:
SKU_US_26576316

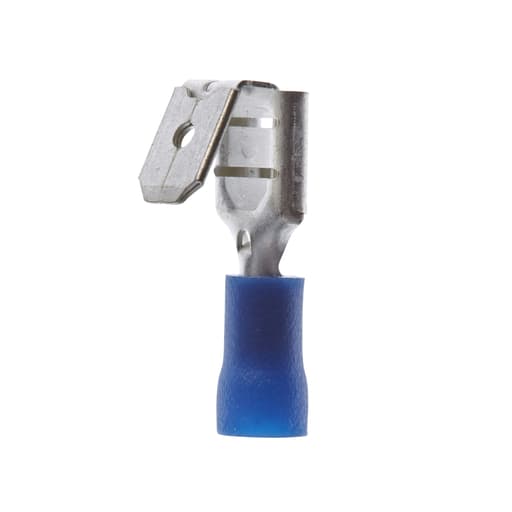

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance. Features: The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide; Allows for quick and easy disconnect of wires; Mates with 0.25-in wide male and female tab; Accommodates wire sizes 22 to 18 AWG; Made of durable brass for good conductivity and has corrosion-resistant tin plating; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
