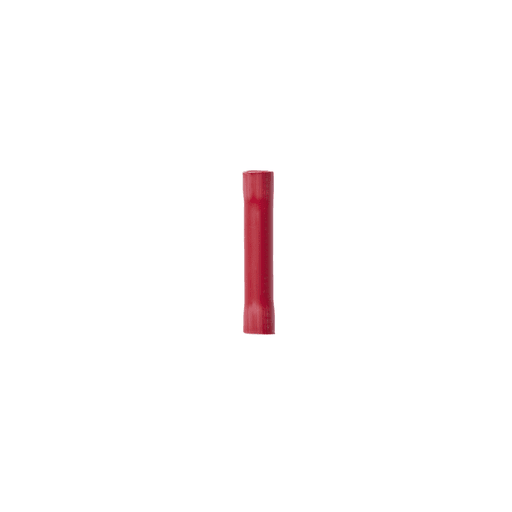

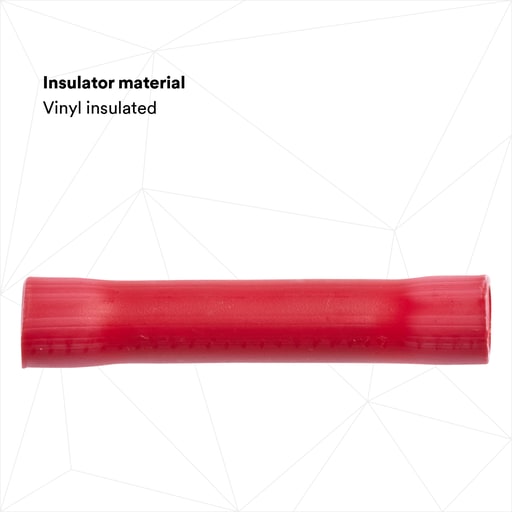

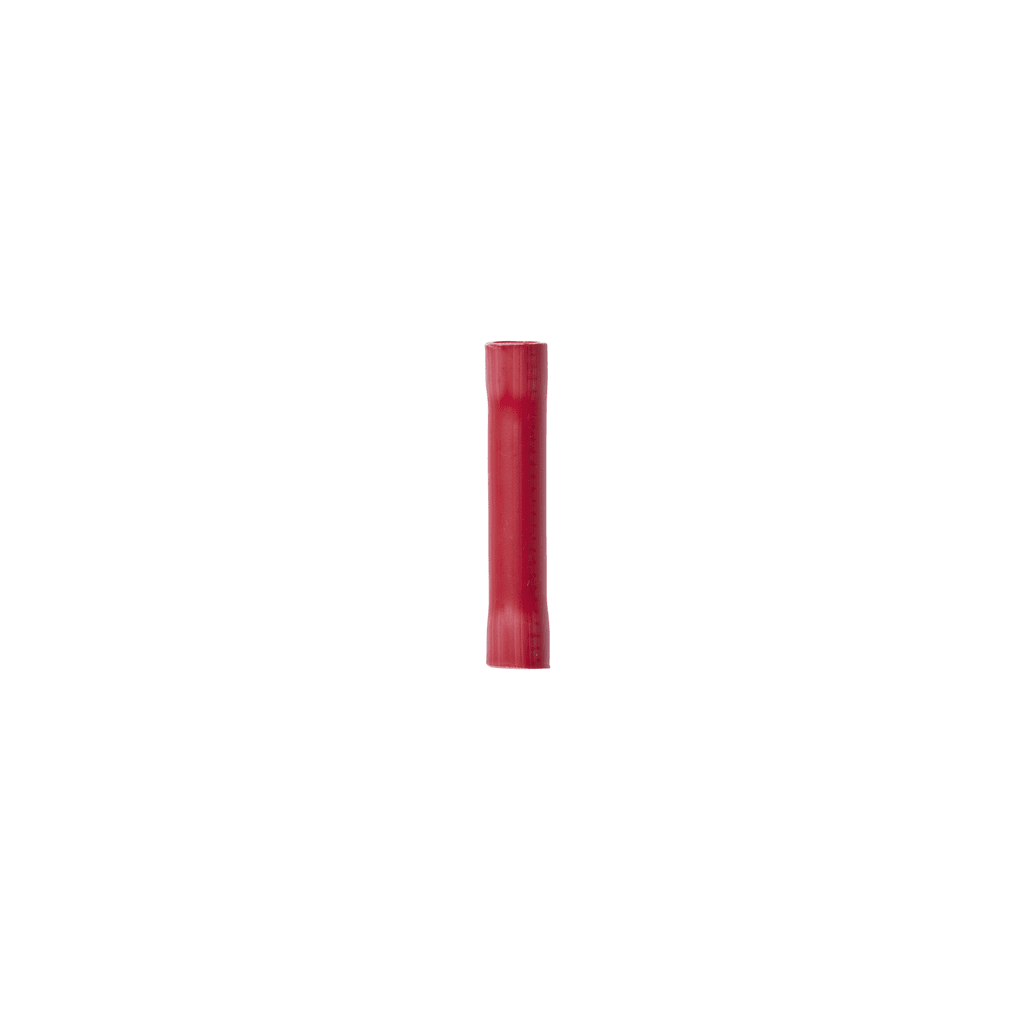

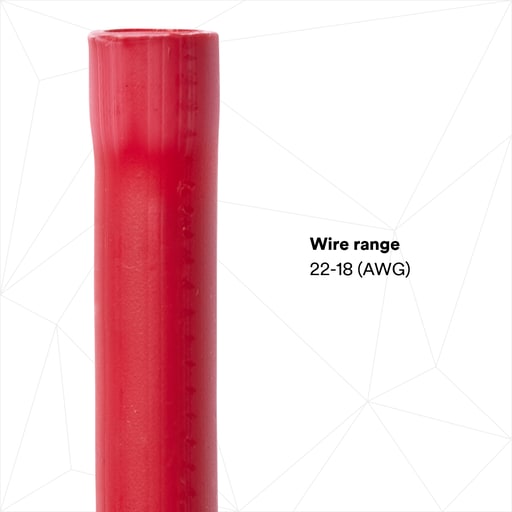

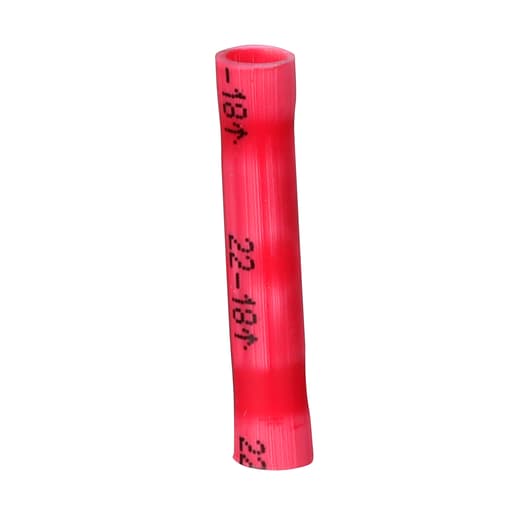

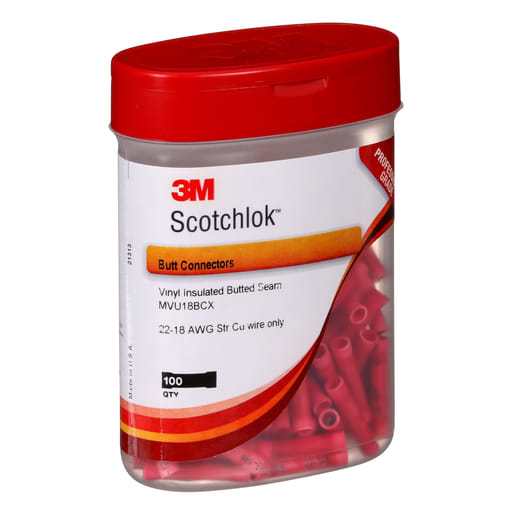

3M - 3M MVU18BCX 100/Bottle Vinyl Insulated Butt Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128588178
Catalog Number - 7100021008
Color - Red
Conductor Size - 18 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128588178
Part #
136027
Catalog #
7100021008
Commercial reference
7100021008
12-Digit UPC:
051128588178
Catalog Number:
7100021008
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
USA
ERP_productname:
MMM MVU18BCX BUTT CONNECTOR VINYL INSULATED, 100/BOTTLE
Family Brand Name:
3M
Length:
1 Inch
Material:
PVC
Overall Length:
1.0 in
Sub Brand:
Scotchlok™
Type:
Butt
SoneparProductId:
SKU_US_25767160
3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: WIRE RANGE: 22-18 (AWG); BUTTED SEAM: Provides a secure fit with butted seam barrel; MAX. OPERATING TEMPERATURE: 221 ±F (105 ±C); INSULATOR MATERIAL: Vinyl insulated; TERMINAL MATERIAL AND PLATING: Features ETP copper terminal material and tin plating; UL LISTED/CSA CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
