3M - 3M RV14-8L Vinyl Insulated Ring
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128600429
Catalog Number - 7000133679
Color - Blue
Conductor Size - 14 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128600429
Part #
224092
Catalog #
7000133679
Commercial reference
7000133679
12-Digit UPC:
051128600429
Catalog Number:
7000133679
Color:
Blue
Conductor Size:
14 AWG
Country of Origin:
USA
ERP_productname:
MMM RV14-8Q RING VINYL INSULATED HIGHLAND BAG 25/BAG
Family Brand Name:
Scotchlok
Length:
0.93 Inch
Material:
Plastic
Overall Length:
0.93 in
Sub Brand:
Highland
Tc Connection:
Ring
Type:
Ring
Widths:
0.31 in
Wire Size:
16-14 AWG
SoneparProductId:
SKU_US_31619027

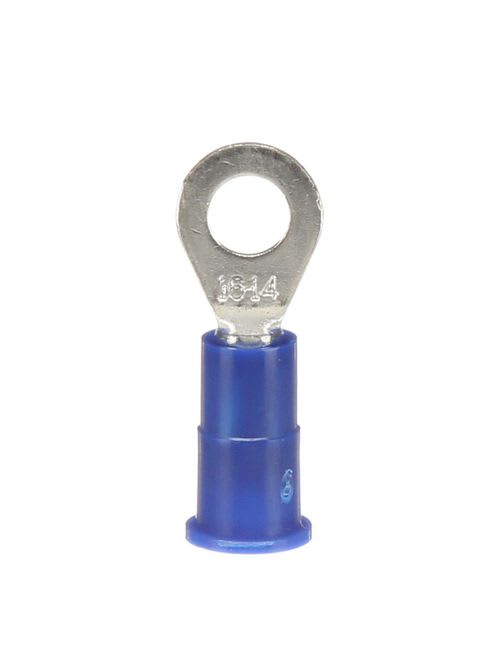

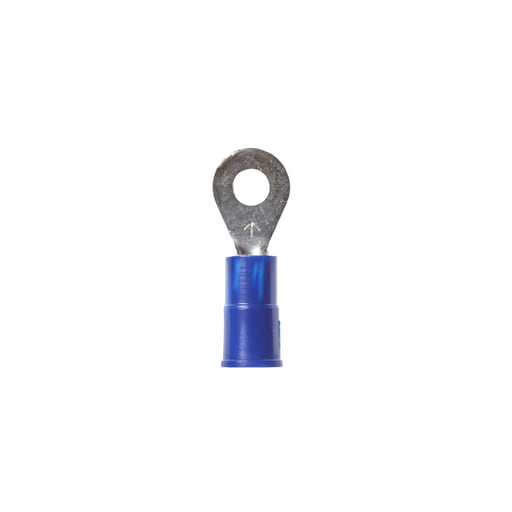

3M™ Highland™ Ring Terminal RV14-8Q accepts a wire range of AWG 16-14 and has a stud size of 8. This ring is a standard style of tongue and is considered the safest and most reliable 3M™ Highland™ Terminal. The 3M™ Highland™ Ring Terminals are UL Listed and CSA Certified. Features: Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance; Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires
