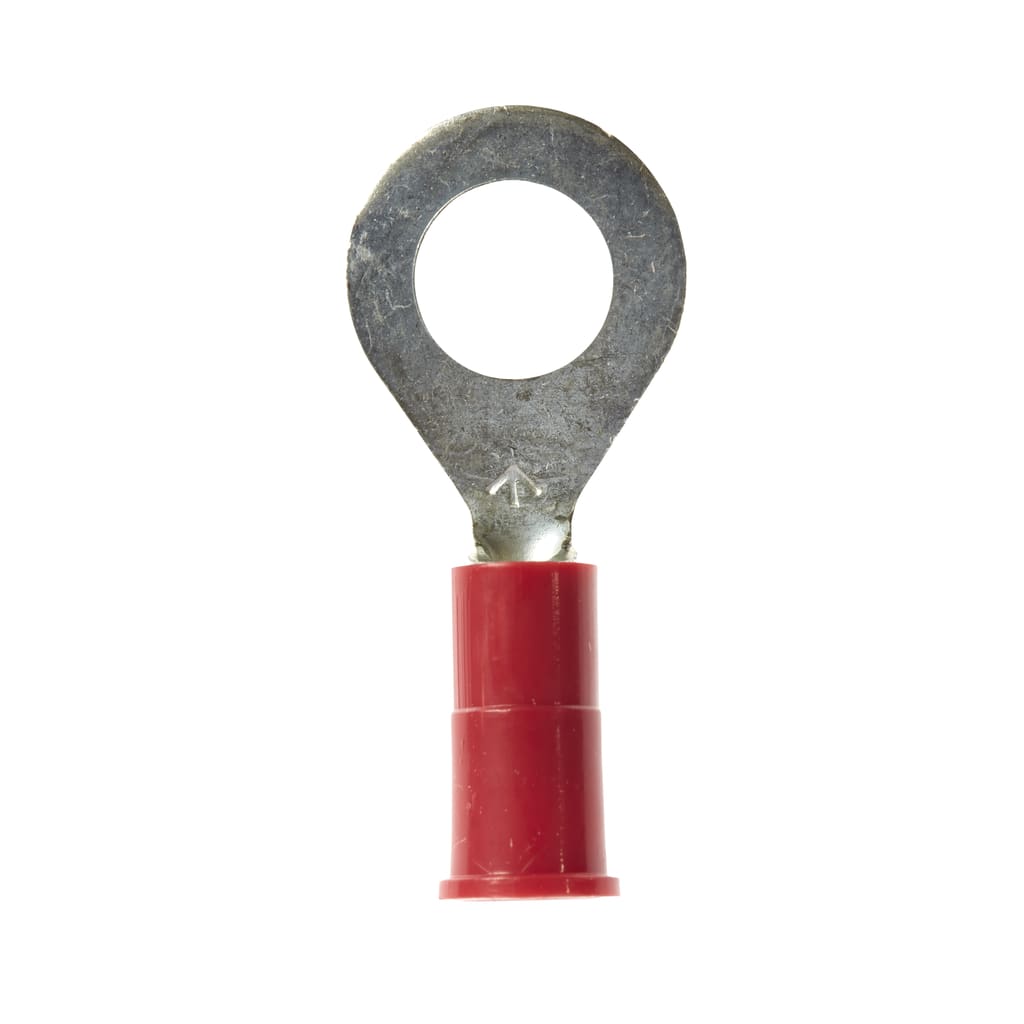

3M - 3M RV18-6Q 25/Bag Ring Vinyl Insulated Highland Bag
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 051128600450
Catalog Number - 7000133682
Color - Red
Conductor Size - 22-18 AWG
Country of Origin - USA
Packaging
1 ea
EAN
00051128600450
Part #
224095
Catalog #
7000133682
Commercial reference
7000133682
12-Digit UPC:
051128600450
Catalog Number:
7000133682
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
USA
ERP_productname:
3M RV18-6Q (7000133682) HIGHLAND VINYL INSULATED BUTTED SEAM RING TONGUES
Family Brand Name:
3M
Material:
PVC
Overall Length:
0.8 in
Sub Brand:
Highland™
Tc Connection:
Ring
Type:
Short Sleeve, Standard
Widths:
0.25 in
Wire Size:
22-18 AWG
SoneparProductId:
SKU_US_26038233
3M™ Highland™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Features: Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance; Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires; Standard-style ring tongue fits around the stud; Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance; Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C); 600V-rated for building wire and 1000V for signs, fixtures or luminaires
