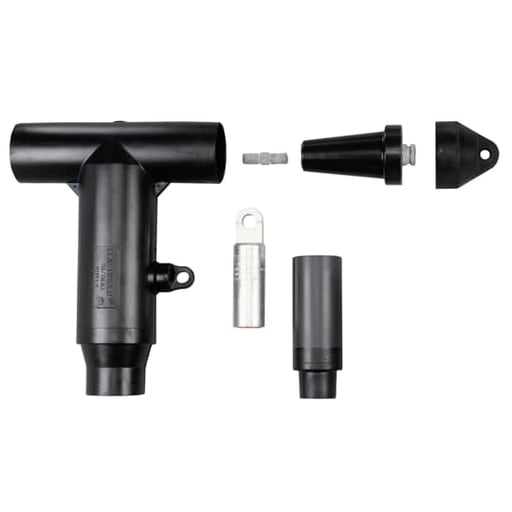

ABB Inc - ABB Elastimold 756LR-M0330-SG3 15/25/35kV, 600 Amp, Deadbreak Elbow, w/ Test Point (includes Plug, Cap, Stud, Lug & Cable Adapter), Cable Insulation Diameter 1.370-1.630 inches, Aluminum Lug, Conductor Size 500 kcmils Stranded Compressed, w/ SG3 Sealing Kit - Cold Shrinkable Seal w/ Copper Braid & Contant Force Spring.
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 075114322973
Amperage - 600 Amp
Applications - 15/25/35kV, 600 Amps
Catalog Number - 756LR-M0330-SG3
Color - Black
Packaging
1 ea
EAN
00075114322973
Part #
478797
Catalog #
756LR-M0330-SG3
Commercial reference
756LR-M0330-SG3
12-Digit UPC:
075114322973
Amperage:
600 Amp
Applications:
15/25/35kV, 600 Amps
Catalog Number:
756LR-M0330-SG3
Color:
Black
Current:
600 Amp
ERP_productname:
ABB 756LR-M0330-SG3 35KV 600A DB ELBOW M0330 SG3
Family Brand Name:
Elastimold
Material:
Rubber
Size:
12.28 in
Tc Connection:
Compression
Type:
Deadbreak Elbow Connector with Test Point
Voltage:
35 kV
SoneparProductId:
SKU_US_345179661
15/25/35kV, 600 Amp, Deadbreak Elbow, with Test Point (includes Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation Diameter 1.370-1.630 inches, Aluminum Lug, Conductor Size 500 kcmils Stranded Compressed, With SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring.
