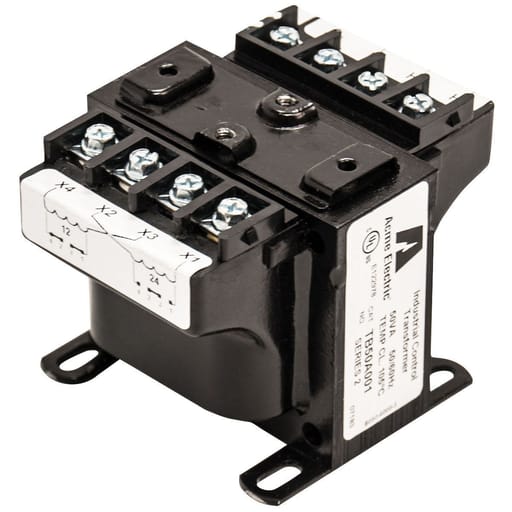

Acme Electric - ACME TB50A013C ICT .050KVA 240X480
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 047503004951
Applications - Open Core & Coil
Catalog Number - TB50A013C
Construction - Encapsulated
Country of Origin - USA
Packaging
1 ea
EAN
00047503004951
Part #
216081
Catalog #
TB50A013C
Commercial reference
TB50A013C
12-Digit UPC:
047503004951
Applications:
Open Core & Coil
Catalog Number:
TB50A013C
Construction:
Encapsulated
Country of Origin:
USA
ERP_productname:
ACME TB50A013C ICT .050KVA 240X480 - 24
Family Brand Name:
Acme Electric Company
Heights:
3.78 Inch
Length:
3.14 Inch
Max Output Current:
2.08333333333333
Number of Phases:
1 Phase
Primary Voltage:
240 V
Secondary Voltage:
24 V
Sub Brand:
Industrial Control
Type:
Non-Reversing
Wattage:
50 Watt
Widths:
3 in
SoneparProductId:
SKU_US_71651498
Acme.s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits. The transformer.s windings and internal terminations are sealed within an epoxy encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme.s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. Features: Secondary fuse clips factory installed, where applicable; Twenty year limited warranty; UL Listed and CSA Certified or cUL; Epoxy encapsulated design protects core & coil assembly from potentially damaging contaminants
