Advance Transformer - Advance 71A6552001CU 120/208/240/277/480 VAC 60 Hz 1000 W Magnetic Metal Halide Ballast
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781087098158
Applications - Lighting Luminaire Component
Catalog Number - 71A6552001CU
ERP_productname - ADV 71A6552001CU MH BAL 1000W M47 5-TAP KIT (ALL CU)
Family Brand Name - Signify
Packaging
1 ea
EAN
00781087098158
Part #
224148
Catalog #
71A6552001CU
Commercial reference
71A6552001CU
12-Digit UPC:
781087098158
Applications:
Lighting Luminaire Component
Catalog Number:
71A6552001CU
ERP_productname:
ADV 71A6552001CU MH BAL 1000W M47 5-TAP KIT (ALL CU)
Family Brand Name:
Signify
Heights:
4-1/4 Inch
Length:
6 Inch
Type:
Magnetic HID
Voltage:
120/208/240/277/480 Volt
Wattage:
1000 Watt
Widths:
4.7 in
SoneparProductId:
SKU_US_57941660

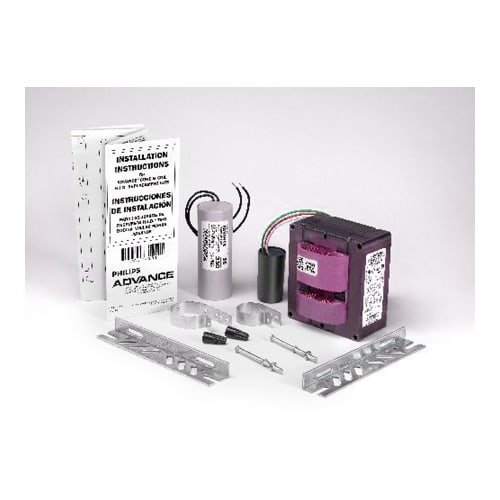

Reliable performance Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise, and dissipate heat;Pre-insulated voltage leads reduce the risk of shock and shrink installation time The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations. Vacuum-pressure impregnated with a silica-filled polyester varnish;All core and coil ballasts below 600W utilize a UL Class H (180.C) insulation system;C and C ballasts 600W and higher utilize a UL Class N (200.C) insulation system;Pre-insulated voltage leads;Ballast kits supplied with pre-wired ignitor High bay retail, manufacturing, gymnasiums, warehouses, parking structures, outdoor
