Allied Moulded Products - Allied Moulded Products AM1206L Wall Mount Enclosure Assembly

CopyCopy
Allied Moulded Products - Allied Moulded Products AM1206L Wall Mount Enclosure Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 085339912095

  • Applications - Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less

  • Buy American - Y

  • Catalog Number - AM1206L

  • Color - Gray

Packaging

  • 1 ea

EAN

00085339912095

Part #

102490

Catalog #

AM1206L

Commercial reference

AM1206L

12-Digit UPC:

085339912095

Applications:

Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less

Buy American:

Y

Catalog Number:

AM1206L

Color:

Gray

Construction:

Compression Molded

Country of Origin:

USA

Depths:

6.01 Inch

ERP_productname:

ALLI AM1206L 12X10X6 NEMA 4X FBRGLS ENCL QUICK-RELEASE LATCH HINGED CVR INDUSTRIAL

Enclosure Type:

JIC Size

Family Brand Name:

Allied Moulded Products, Inc.

Heights:

12.14 Inch

Material:

Polyester

Mounting Type:

Stainless Steel Feet Fastened To Back Side Brass Inserts

Size:

A=12.14", B=10.26", C=6.13", usable depth=5.68"

Sub Brand:

AM JIC

Type:

NEMA 4X Type Nonmetallic Enclosure

Widths:

10.26 in

SoneparProductId:

SKU_US_26790586

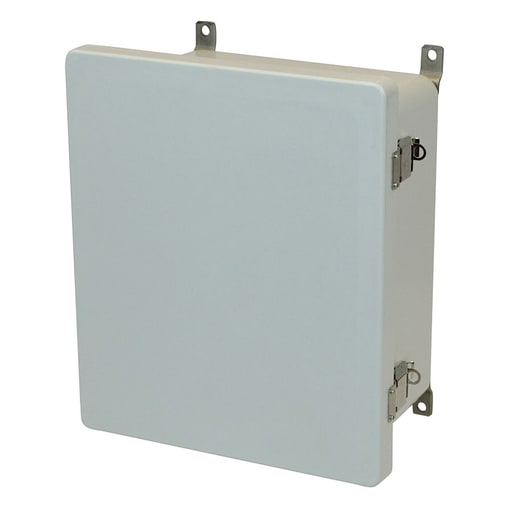

12"x10"x6" AM Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel snap latch Features: Non-corrosive; non-conductive; light weight with lower installation cost; easy to modify and longer life cycle compared to steel; Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover - Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 - File No. E120175; CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13 - File No. 89590; Complies with EN / IEC 60204-1 and 60529 Type IP66 and RoHS directive - Application: Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
