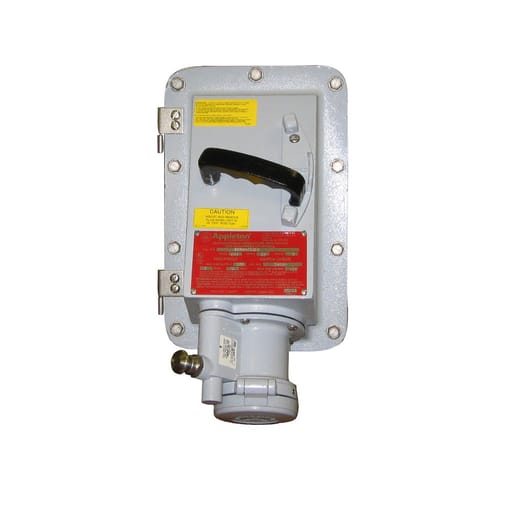

Appleton Electric - APP EBR1034EH100 EBR 100A 3W 4P WES

CopyCopy
Appleton Electric - APP EBR1034EH100 EBR 100A 3W 4P WES

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781381187923

  • Amperage - 100 Amp

  • Applications - For ACP Plugs

  • Catalog Number - EBR1034EH100

  • ERP_productname - APP EBR1034EH100 EBR 100A 3W 4P WEST EHB 100A

Packaging

  • 1 ea

EAN

00781381187923

Part #

217690

Catalog #

EBR1034EH100

Commercial reference

EBR1034EH100

12-Digit UPC:

781381187923

Amperage:

100 Amp

Applications:

For ACP Plugs

Catalog Number:

EBR1034EH100

ERP_productname:

APP EBR1034EH100 EBR 100A 3W 4P WEST EHB 100A

Family Brand Name:

Appleton

Horsepower:

1 hp

Material:

Aluminum

Number of Poles:

4 Pole

Number of Wires:

2,3

Tc Connection:

Pressure Wire Terminal

Type:

EBR Series Receptacle With Mounting Box

Voltage:

120 Volt

SoneparProductId:

SKU_US_194513568

EBR 30, 60, 100 and 150 Amp Series Receptacles incorporate your choice of an interlocked circuit breaker or disconnect switch along with explosionproof and dust-ignitionproof protection. The interlocked circuit breaker provides connect and disconnect operating functions as well as short circuit and thermal time delay overload protection, safeguarding valuable equipment against expensive damage. The interlocked disconnect switch provides safe connection and disconnection. Features: EBRH: interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum. Two or three pole, non-fused motor circuit switch. EBRH permits safe operation in Class I, Group B as well as Class I, Group; EBR: interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection; To operate, insert plug (which automatically locks into receptacle) and turn Breaker Handle to ON position. To remove plug, turn Handle to OFF position, lift Plug Release Knob and pull plug out.; Style 2 (shell and extra pole) grounding; Spring door keeps dust out of receptacle when plug is not in use. Screw cap also supplied at no charge for NEMA 4 applications.; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Plug mechanical cable clamps prevent strain on cables . they meet or exceed UL strain relief pull-out requirements; Neoprene bushing compressed by cable collar prevents entrance of water; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings; one top two bottom; ACP and CPH plug fits Powertite™ Series hazardous location EBR and EBRH receptacles.
