Appleton Electric - APP ECC756RH ECC CABLE CONNECTOR .5
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381248907
Amperage - 20 Amp
Applications - For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord
Catalog Number - ECC756RH
ERP_productname - APP ECC756RH ECC CABLE CONNECTOR .500-.625
Packaging
1 ea
EAN
00781381248907
Part #
344581
Catalog #
ECC756RH
Commercial reference
ECC756RH
12-Digit UPC:
781381248907
Amperage:
20 Amp
Applications:
For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord
Catalog Number:
ECC756RH
ERP_productname:
APP ECC756RH ECC CABLE CONNECTOR .500-.625
Family Brand Name:
Appleton
Material:
Aluminum
Size:
3/4 IN Nipple
Type:
ECC Series Portable Cord Connector
Voltage:
480 Volt
Wire Size:
18-12 AWG
SoneparProductId:
SKU_US_197924578

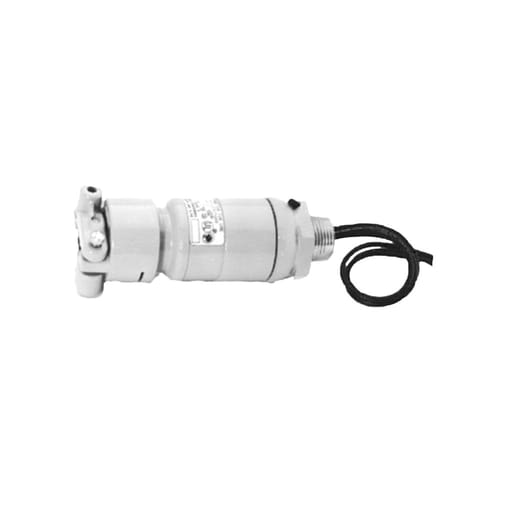

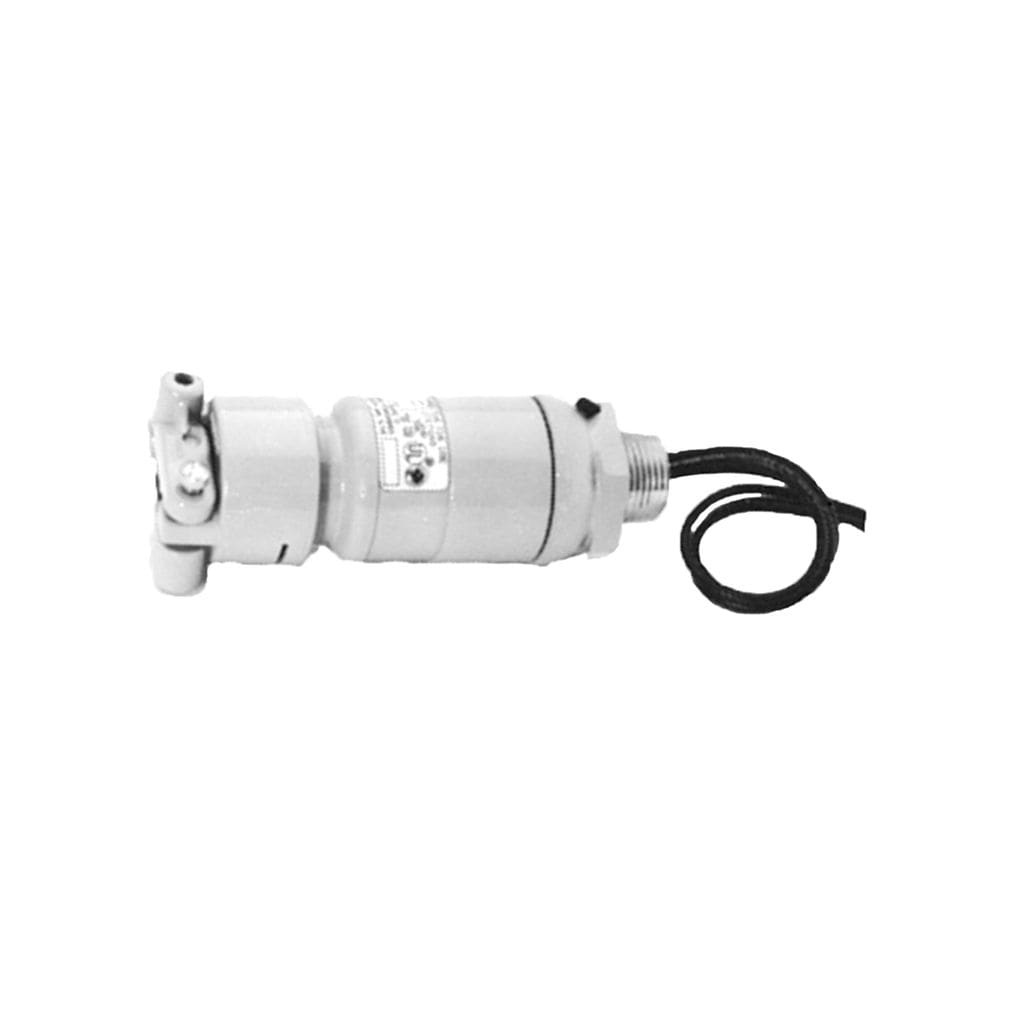

ECC Factory Sealed 20 Amp Portable Cord Connector is both explosionproof and dust-ignitionproof. Constructed of epoxy powder coated copperfree aluminum, this durable connector is generally used for equipment that requires limited or short range mobility. It is ideal for connecting a portable cord to a fixed enclosure. Features: For use with No. 18 thru 12 AWG 3-Conductor Type S or SO cord; Furnished with 9 ±C wire leads; 12\"\" leads of #12 stranded wire are furnished for connection to wiring or equipment within the explosionproof housing
