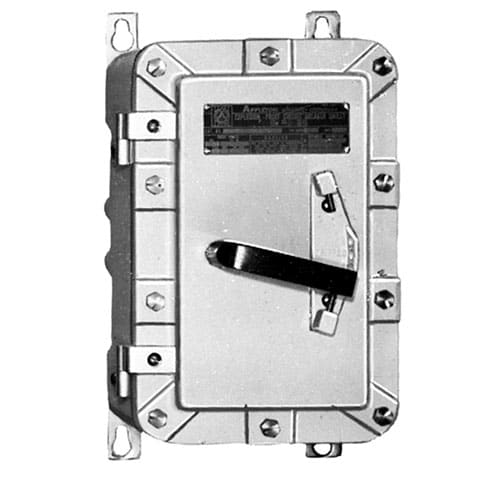

Appleton Electric - APP EDS1036 DISC.SWITCH UNILET 100

Appleton™ explosionproof, dust-ignitionproof EDS Series non-fused switches provide a safe means of disconnecting loads or controlling motors. The lightweight, compact design and internal flange provides the smallest footprint available for a disconnect switch in the industry. For use with heavy duty loads in hazardous environments. This 600 Vac 3-pole, motor circuit switch is available in 30, 60, 100, and 200 Amp units. Features: Explosionproof, dust-ignitionproof. Functions as load disconnect switch or as individual motor control switch; Hinged, removable cover provides instant access for installation and servicing; Self-locating, spring-mounted internal handle actuator; Rugged handle has stainless steel shaft within a stainless steel bushing; may be locked in ON or OFF position; Removable mounting plate simplifies installation; Top and bottom standard feed-thru conduit openings. Removable reducer bushing furnished with each opening; Additional top and bottom openings for drain and breather; supplied with close-up plugs; Covers have captive, slotted, stainless steel screws to prevent \"freezing\; Insulated neutral lug supplied as standard; For 200 Amp, please contact your local sales representative
