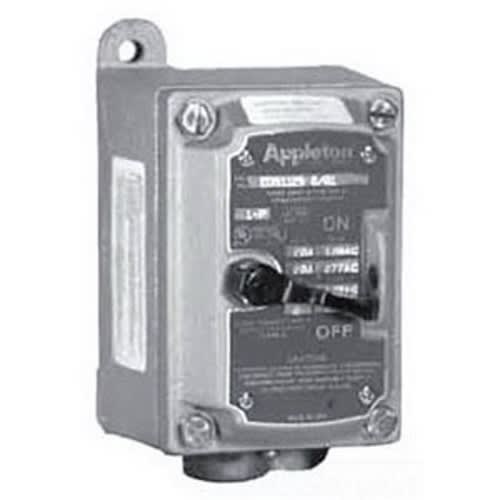

Appleton Electric - APP EDS2129SA ALUM 1-G 3/4 SNAP SWT

CopyCopy
Appleton Electric - APP EDS2129SA ALUM 1-G 3/4 SNAP SWT

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781381736886

  • Actuator - Front Operated

  • Amperage - 20 Amp

  • Applications - For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present

  • Catalog Number - EDS2129SA

Packaging

  • 1 ea

EAN

00781381736886

Part #

403798

Catalog #

EDS2129SA

Commercial reference

EDS2129SA

12-Digit UPC:

781381736886

Actuator:

Front Operated

Amperage:

20 Amp

Applications:

For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present

Catalog Number:

EDS2129SA

ERP_productname:

APP EDS2129SA ALUM 1-G 3/4 SNAP SWTCH STA-FS

Enclosure:

NEMA 3, 7CD, 9EFG

Family Brand Name:

Appleton

Number of Poles:

1 Pole

Sub Brand:

Contender

Type:

EDS Series 1-Gang Tumbler Switch

Voltage:

120-277 VAC

SoneparProductId:

SKU_US_72411858

Contender EDS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Actuator: Front Operated, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Aluminum Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 5.31 IN, Width: 3.72 IN, Depth: 5.31 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1, Groups C, D, Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
