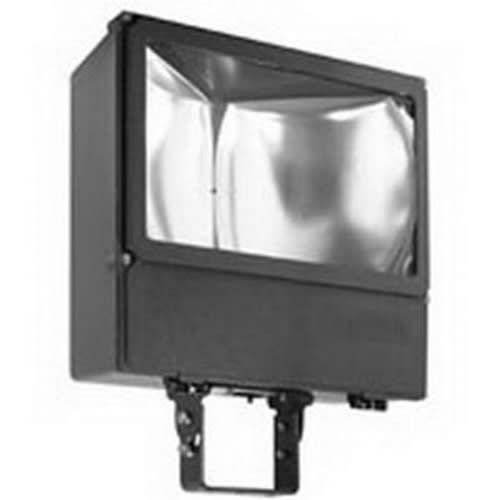

Appleton Electric - APP G-AM771L-MTI/2 AREAMSTR 400W MT

CopyCopy
Appleton Electric - APP G-AM771L-MTI/2 AREAMSTR 400W MT

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781381475488

  • Amperage - 1.4/1.7 Amp

  • Applications - For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting

  • Catalog Number - G-AM771L-MTI/2

  • ERP_productname - APP G-AM771L-MTI/2 AREAMSTR 400W MT HAZ/MARINE

Packaging

  • 1 ea

EAN

00781381475488

Part #

220390

Catalog #

G-AM771L-MTI/2

Commercial reference

G-AM771L-MTI/2

12-Digit UPC:

781381475488

Amperage:

1.4/1.7 Amp

Applications:

For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting

Catalog Number:

G-AM771L-MTI/2

ERP_productname:

APP G-AM771L-MTI/2 AREAMSTR 400W MT HAZ/MARINE

Family Brand Name:

Appleton

Fixture Type:

Yoke Mount

Length:

433.4 mm

Material:

Aluminum

Sub Brand:

Areamaster 250/400

Type:

Integrally Ballasted Floodlight

Voltage:

120/208/240/277 Volt

Widths:

7.374 in

SoneparProductId:

SKU_US_197924561

Appleton Areamaster 250/400 Integrally Ballasted Floodlight, Fixture Type: Yoke Mount, Lamp Type: 400 WTT Mogul High Pressure Sodium, Lamp Wattage: 400 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Zinc Plated Steel Yoke Mount, Stainless Steel Bolts, Fixture Wattage: 465 WTT, Amperage Rating: 1.4 AMP Starting, 1.7 AMP Operating At 277 V, Length: 433.4 MM, Width: 187.3 MM, Housing Finish: Architectural Bronze Polyester, Housing Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 50 DEG C, Temperature Range: 125 DEG C Supply Wire, Lens Material: Glass, Ballast Type: Constant Wattage Autotransformer (C.W.A), Ballast Quantity: 1, Hub Size: 1/2 IN NPT, Reflector/Refractor: Alzak Finished Aluminum Reflector, Frequency Rating: 60 HZ, Enclosure: IP66, Standard: NEC: For Marine And Hazardous Locations Class I, Division 2, Groups A,B, C, D, UL Listed: E10794, 1598, 1598A, 844, For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting
