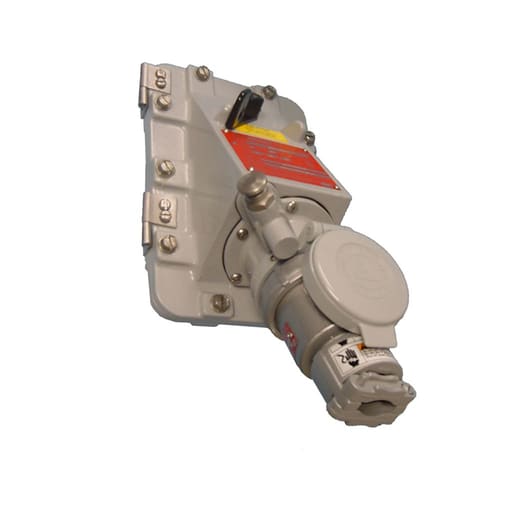

Appleton Electric - APP JBR3034150 SWITCHED RECEPT.30A

JBR Series 30 and 60 Amp Switched Receptacles are heavy duty flanged and bolted enclosures that provide exceptional safety in hazardous locations. The terminal block in the mounting box makes wiring easy, and a special polarization option prevents insertion of a plug into a receptacle wired for a different voltage. Dead front interlocked construction requires the plug to be fully inserted before the switch can be placed in the ON position. Features: Internal switch provides safe and quick disconnect means. No need for separate disconnect switch; Positive polarization: only plugs of the same style, number of poles and amperage rating may be used with these receptacles; Terminal block provided in mounting box for ease of wiring. Factory wired between the receptacle and terminal block; Plug must be inserted into receptacle before the switch is in the on position; Style 2 (shell and extra pole) grounding; Receptacles may be locked in the OFF position; Receptacle supplied with flip cover and screw cover; Mounting box provided 1-1/2#8221; vertical feed-thru conduit openings. Reducer bushings provided for 1-1/4#8221; conduit opening. All conduit openings have NPT threads; O-ring gasket provided between the mounting box and receptacle cover; JBR is UL Listed for use with ACP Powertite™ and CPH plugs
