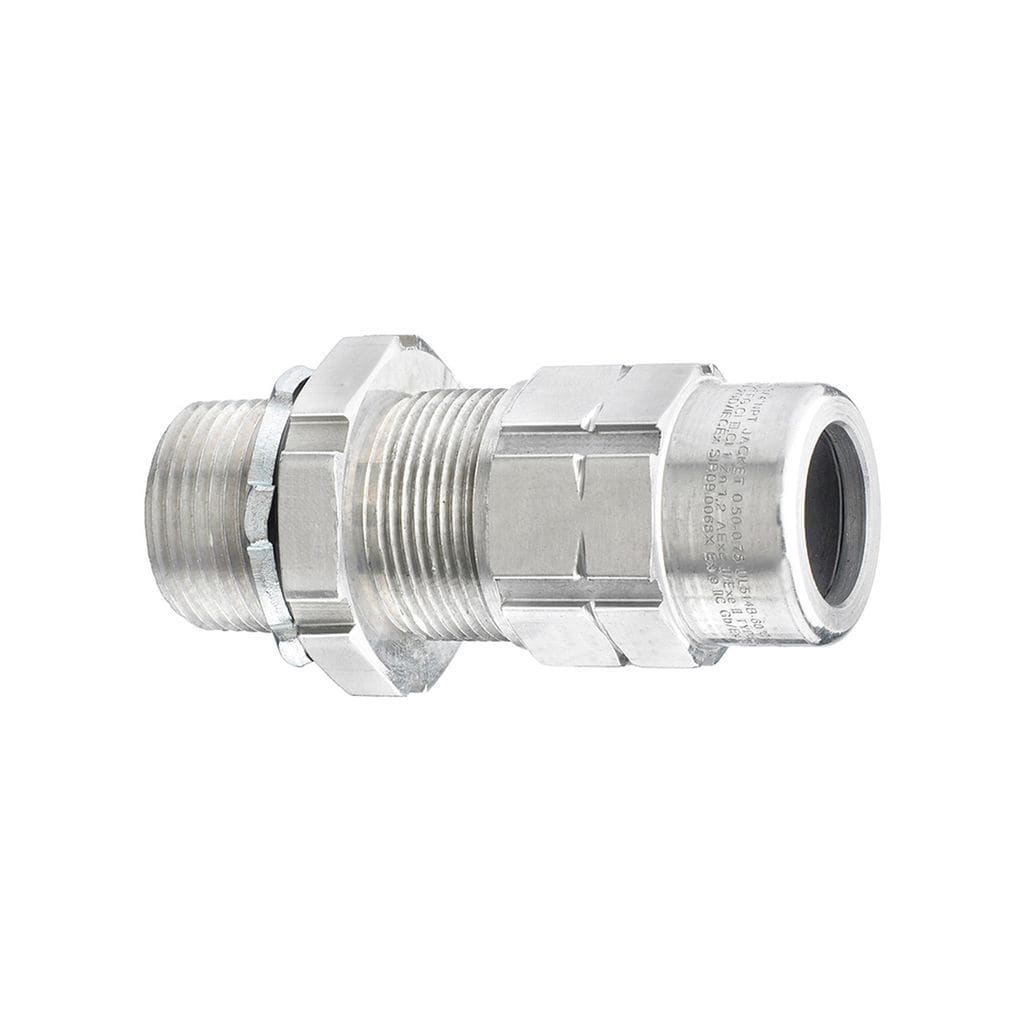

Appleton Electric - APP TMC2-200233A TMC2 CABLE GLAND A

Appleton™ TMC2 Connectors are designed for use with MC/MC-HL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLx) cables. They are used to provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor. Features: Simplified two piece design; Integral 'O' ring face seal providing . 4X and IP66; Independent sealing and armor clamping; True 360± grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required). Re-usable design; Widest cable acceptance range; 1/2#8221;, 3/4#8221; and 1#8221; supplied with zinc plated steel locknut; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Continuous operating temperature -60 ±C to +110 ±C (-76 ±F to +230±F)
