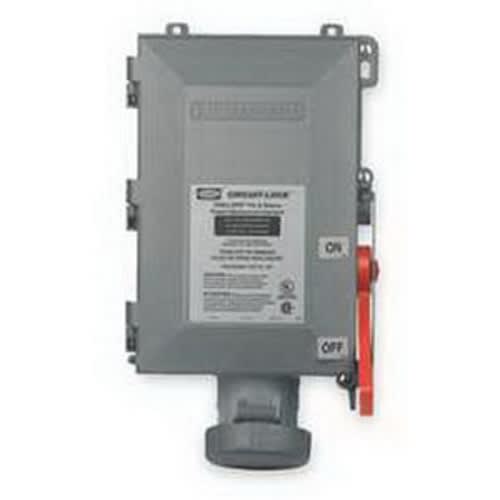

Appleton Electric - APP WSRD6352WSQ SQ-D RCPT NEMA12 60
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381756990
Amperage - 60 Amp
Applications - For ACP6034BC Mating Plug
Catalog Number - WSRD6352WSQ
ERP_productname - APP WSRD6352WSQ SQ-D RCPT NEMA12 60A FUSE WIND
Packaging
1 ea
EAN
00781381756990
Part #
156474
Catalog #
WSRD6352WSQ
Commercial reference
WSRD6352WSQ
12-Digit UPC:
781381756990
Amperage:
60 Amp
Applications:
For ACP6034BC Mating Plug
Catalog Number:
WSRD6352WSQ
ERP_productname:
APP WSRD6352WSQ SQ-D RCPT NEMA12 60A FUSE WIND
Family Brand Name:
Appleton
Material:
Aluminum
Number of Poles:
4 Pole
Number of Wires:
3 Wire
Type:
Fused WSRD Series Interlocked Receptacle With Enclosure
Voltage:
600//250 VAC//VDC
Wire Size:
6-2 AWG
SoneparProductId:
SKU_US_198523308
Appleton Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Sheet Metal Enclosure, Nema Rating: NEMA 3R, 12, Mounting: Surface Mount, Motor Horsepower: 15 HP Standard/50 HP Maximum At 600 VAC, Finish: Epoxy Powder Coat Receptacle, Enamel Coated Enclosure, Dimensions: 10.81 IN Width X 23 IN Height X 10 IN Depth, Standard: UL 98, UL 50E, UL 1682, UL 1686, UL Listed: E145917, E160652, CSA Standard: C22.2 No.4, C22.2 No. 182.1, CSA Certified: 025875, For ACP6034BC Mating Plug
