Appleton Electric - Appleton 20A2F0505 A2F Nickel Plated Brass Cable Glands - PN 20A2F0505
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381248785
Applications - For Unarmored Cable
Catalog Number - 20A2F0505
ERP_productname - APP 20A2F0505 A2F CABLE GLAND 050NPT
Enclosure - IP66, IP68
Packaging
1 ea
EAN
00781381248785
Part #
160938
Catalog #
20A2F0505
Commercial reference
20A2F0505
12-Digit UPC:
781381248785
Applications:
For Unarmored Cable
Catalog Number:
20A2F0505
ERP_productname:
APP 20A2F0505 A2F CABLE GLAND 050NPT
Enclosure:
IP66, IP68
Family Brand Name:
Appleton
Finish:
Nickel
Material:
Brass
Size:
1/2 IN (20)
Tc Connection:
NPT
Type:
A2F Series Cable Gland Connector
SoneparProductId:
SKU_US_197775773

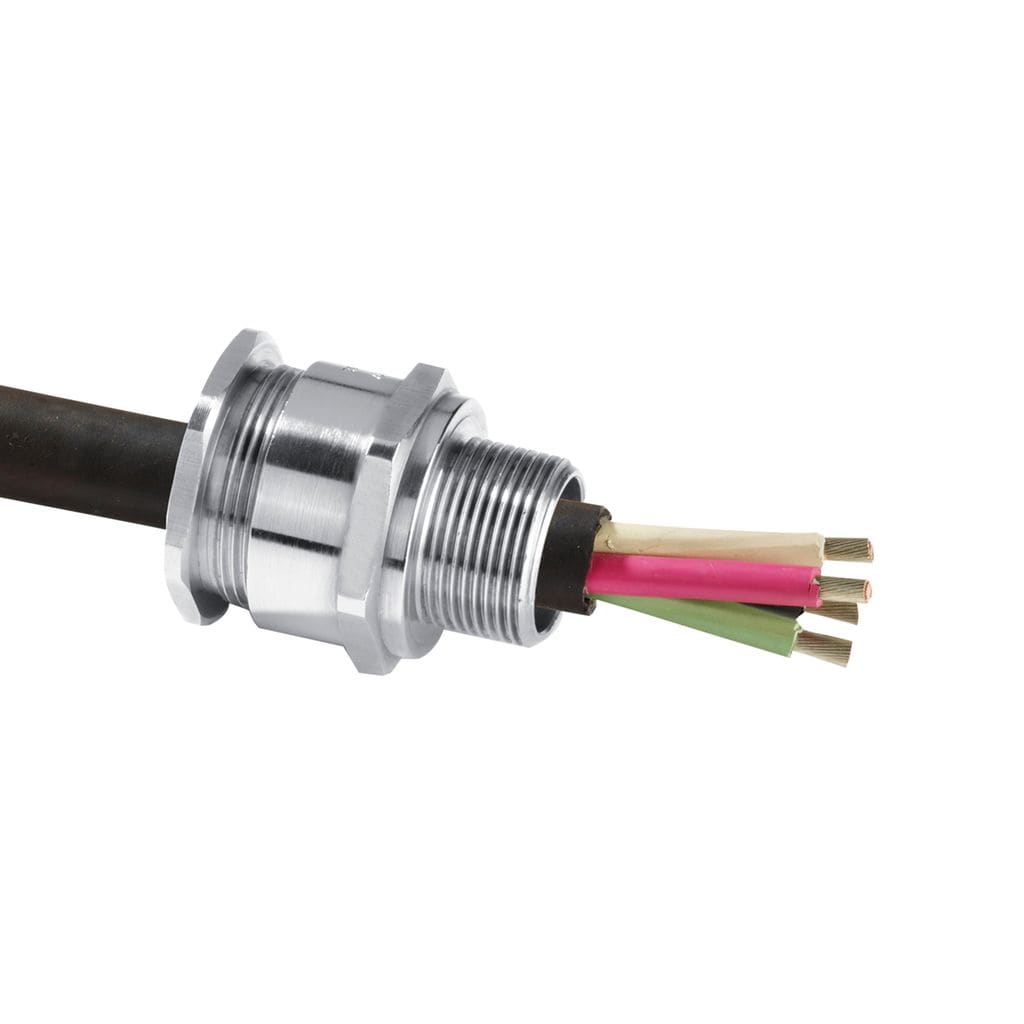

Appleton™ A2F Series Nickel Plated Brass Cable Glands are suitable for unarmored and exterior braid armor with protective sheath cable certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per .10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust. Features: Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable
