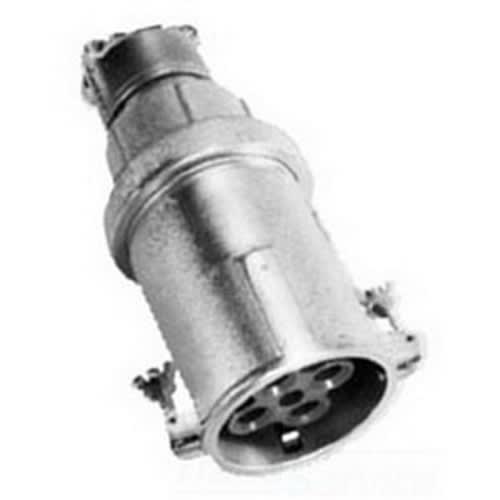

Appleton Electric - Appleton ARC20044E 200A CONN BODY ASSY 4
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381447676
Amperage - 200 Amp
Applications - For AP20044E Plug
Catalog Number - ARC20044E
Conductor Size - 2/0 AWG-250 kcmil
Packaging
1 ea
EAN
00781381447676
Part #
387126
Catalog #
ARC20044E
Commercial reference
ARC20044E
12-Digit UPC:
781381447676
Amperage:
200 Amp
Applications:
For AP20044E Plug
Catalog Number:
ARC20044E
Conductor Size:
2/0 AWG-250 kcmil
ERP_productname:
APP ARC20044E 200A CONN BODY ASSY 4PS1 2.500
Family Brand Name:
Appleton
Material:
Aluminum
Number of Poles:
4 Pole
Number of Wires:
4 Wire
Sub Brand:
Powertite™
Tc Connection:
Pressure Wire Terminal
Type:
Grounding Style 1
Voltage:
600 VAC/250 VDC
Wire Size:
00 AWG-250 kcmil
SoneparProductId:
SKU_US_197659706
Powertite Grounding Style 1 Connector Body, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PC
