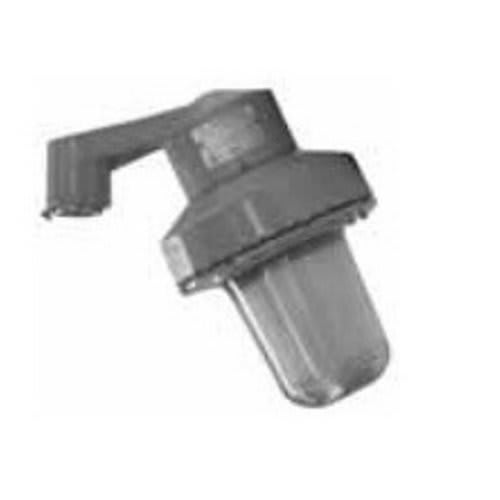

Appleton Electric - Appleton CIS30150 Incandescent Factory Sealed Luminaire, 25deg Stanchion Mount, (1) 1-1/2" Hub, Explosionproof, Dust-Ignitionproof

CopyCopy
Appleton Electric - Appleton CIS30150 Incandescent Factory Sealed Luminaire, 25deg Stanchion Mount, (1) 1-1/2" Hub, Explosionproof, Dust-Ignitionproof

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781381103466

  • Applications - For Use In Hazardous Locations Such As Plants Where Plastics, Paints, Thinners And Petrochemicals Are Manufactured, Chemical And Petrochemical Plants, Such As Manufacturers Of Plastics, Paints And Thinners, In Refineries, And In Other Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Elements May Be Present; Suitable For Outdoor Saltwater Locations And For Other Wet Locations; Use With Threaded Metal Conduit

  • Catalog Number - CIS30150

  • ERP_productname - APP CIS30150 CDMSTR 300WMAX INCAND FIX STAN

  • Family Brand Name - Appleton

Packaging

  • 1 ea

EAN

00781381103466

Part #

118156

Catalog #

CIS30150

Commercial reference

CIS30150

12-Digit UPC:

781381103466

Applications:

For Use In Hazardous Locations Such As Plants Where Plastics, Paints, Thinners And Petrochemicals Are Manufactured, Chemical And Petrochemical Plants, Such As Manufacturers Of Plastics, Paints And Thinners, In Refineries, And In Other Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Elements May Be Present; Suitable For Outdoor Saltwater Locations And For Other Wet Locations; Use With Threaded Metal Conduit

Catalog Number:

CIS30150

ERP_productname:

APP CIS30150 CDMSTR 300WMAX INCAND FIX STAN

Family Brand Name:

Appleton

Fixture Type:

25 DEG Stanchion

Length:

12.48 Inch

Material:

Aluminum

Sub Brand:

Code Master

Type:

Incandescent Factory Sealed Luminaire Without Guard

Voltage:

300 VAC

Widths:

12.87 in

SoneparProductId:

SKU_US_71969249

Appleton Code Master Incandescent Factory Sealed Luminaire Without Guard, Fixture Type: 25 DEG Stanchion, Lamp Type: 300 WTT PS25 Medium Incandescent, Lamp Wattage: 300 WTT, Voltage Rating: 300 VAC, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Fixture Housing, Mounting Hood And Guard, Porcelain Sockets With Nickel-Plated Phosphor Bronze Screw Shell, Fixture Wattage: 300 WTT, Length: 12.48 IN, Width: 12.87 IN, Housing Finish: Epoxy Power Coat Fixture Housing, Guard And Mounting Hood, Housing Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 40 DEG C, Temperature Range: 75 DEG C Supply Wire, Lens Material: Heat And Impact Resistant Prismatic Glass Globe, Number Of Hubs: 1, Hub Size: 1-1/2 IN, Reflector/Refractor: Fiberglass Reinforced Polyester Reflector HZ, Frequency Rating: 60 HZ, Enclosure: NEMA 3R, 4X, Standard: NEC: Class I, Division 1, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, CEC: ClassI, Division 1 And 2, Groups B, C, D. T3B, Class I, Zone 1 And 2, Groups IIB, IIA, Exd IIB + H2, Zone 1, Class II, Division 1 And 2, Groups E, F, G. T3B, Class III, CSA Certified, UL 1598, UL 1598A, UL 844, UL E10444, For Use In Hazardous Locations Such As Plants Where Plastics, Paints, Thinners And Petrochemicals Are Manufactured, Chemical And Petrochemical Plants, Such As Manufacturers Of Plastics, Paints And Thinners, In Refineries, And In Other Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Elements May Be Present, Suitable For Outdoor Saltwater Locations And For Other Wet Locations, Use With Threaded Metal Conduit
