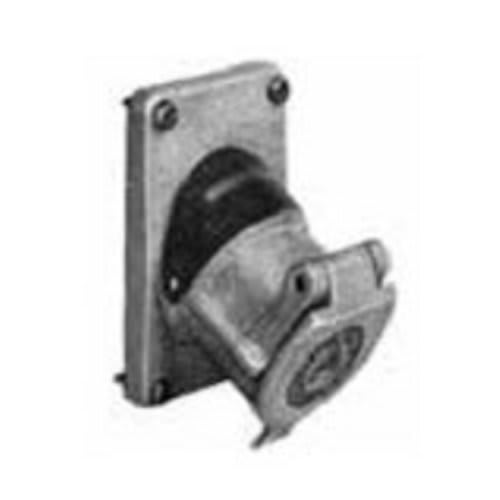

Appleton Electric - Appleton ECSK-2023 RECEPT COVER ASSY 120
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381281416
Amperage - 20 Amp
Catalog Number - ECSK2023
Color - Gray
ERP_productname - APP ECSK-2023 RECEPT COVER ASSY 120VAC CSA
Packaging
1 ea
EAN
00781381281416
Part #
210622
Catalog #
ECSK-2023
Commercial reference
ECSK-2023
12-Digit UPC:
781381281416
Amperage:
20 Amp
Catalog Number:
ECSK2023
Color:
Gray
ERP_productname:
APP ECSK-2023 RECEPT COVER ASSY 120VAC CSA
Family Brand Name:
Appleton
Horsepower:
1 hp
Material:
Aluminum
Mounting Type:
Box
Number of Poles:
4 Pole
Number of Wires:
2 Wire
Sub Brand:
U-Line™
Type:
Receptacle And Cover Assembly
Voltage:
125 Volt
SoneparProductId:
SKU_US_72283424
Appleton ECS EXP Controls, 15/20A 125VAC 1HP Receptacle Cover, w/ Flip Cover. Requires ECS175 or ECS275 backbox & ECP type plug Features: Factory sealed, external seals not required. Arcing is safely confined to receptacle interior; Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; ECP plug fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R, or 6-20R) as well as U-Line explosionproof receptacles; Intermateable with competitor's plugs of like configurations
