Appleton Electric - Appleton EDS2190 2-UNIV P.B. 1-G 3/4 ST
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381698955
Actuator - Front Operated
Applications - For Remote Control Of Motors
Catalog Number - EDS2190
ERP_productname - APP EDS2190 2-UNIV P.B. 1-G 3/4 STA. FS
Packaging
1 ea
EAN
00781381698955
Part #
198420
Catalog #
EDS2190
Commercial reference
EDS2190
12-Digit UPC:
781381698955
Actuator:
Front Operated
Applications:
For Remote Control Of Motors
Catalog Number:
EDS2190
ERP_productname:
APP EDS2190 2-UNIV P.B. 1-G 3/4 STA. FS
Enclosure:
NEMA 3, 7CD, 9EFG
Family Brand Name:
Appleton
Sub Brand:
Contender
Type:
EDS Series 1-Gang 2 Circuit Push Button Switch
SoneparProductId:
SKU_US_89395954

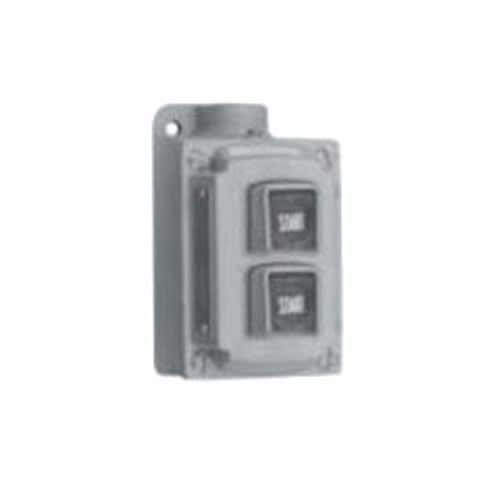

Contender EDS Series 1-Gang 2 Circuit Push Button Switch, Action: Momentary, Contact Configuration: 2 NO/2 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Front Operated, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 5.31 IN, Width: 3.72 IN, Depth: 3.06 IN, Legend: Start/Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors
