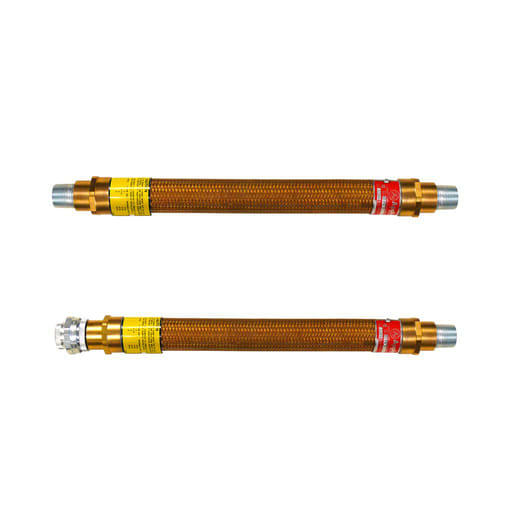

Appleton Electric - Appleton EXGJH-212 3/4" Explosion Proof Flexible Coupling
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381317702
Applications - For use with Threaded Rigid Metal Conduit and IMC
Catalog Number - EXGJH212
ERP_productname - APP EXGJH212 3/4X12 FLEX CPLG
Family Brand Name - Appleton
Packaging
1 ea
EAN
00781381317702
Part #
173564
Catalog #
EXGJH212
Commercial reference
EXGJH212
12-Digit UPC:
781381317702
Applications:
For use with Threaded Rigid Metal Conduit and IMC
Catalog Number:
EXGJH212
ERP_productname:
APP EXGJH212 3/4X12 FLEX CPLG
Family Brand Name:
Appleton
Finish:
Natural
Length:
16-1/2 Inch
Material:
Bronze
Sub Brand:
Unilet
Tc Connection:
Female Threaded
Trade Size:
3/4 Inch
Type:
Flexible Coupling
SoneparProductId:
SKU_US_58166383
Appleton™ EXGJH and EXLK explosionproof and dust-ignitionproof flexible couplings are designed for use in areas where vibration and/or movement is a problem. They can be used in place of rigid conduit in difficult-bend situations. Features: Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis; no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; EXGJH: both end fittings are female, each furnished with a removable male nipple; EXLK: female end fitting with union at one end and a female end fitting with a removable male nipple at the other end
