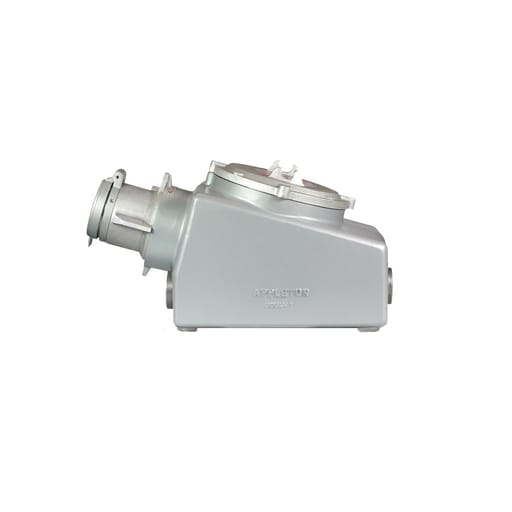

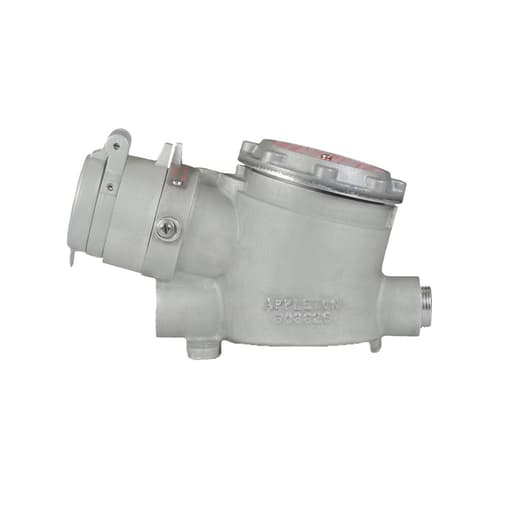

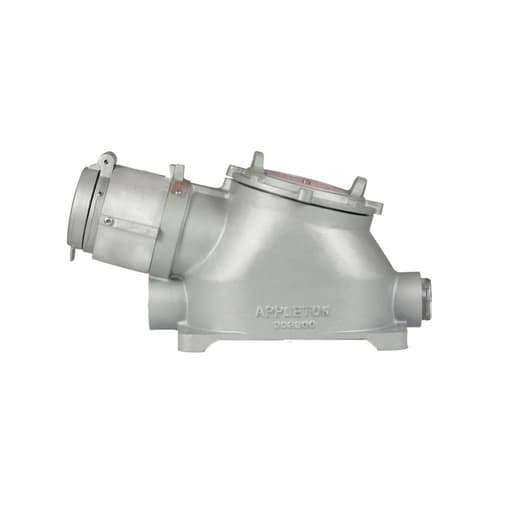

Appleton Electric - Appleton FSQC61040 RCPT 100A 3W4P 2 SWI

FSQC 30, 60 and 100 Amp Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments. The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite™ plugs. Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle. For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage. Features: Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch; To operate, insert the plug and turn receptacle collar to the ON position. To remove the plug, turn the plug to the OFF position and pull the plug out; Style 2 (shell and extra pole) grounding; Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied free of charge for NEMA 4 applications.; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Contacts have beryllium copper wire springs; Tapped NPT conduit openings at top and bottom: 30 Amp 3/4#8221;, 60 Amp 1-1/2#8221;, 100 Amp 2#8221;; Large housing provides ample wiring room; Powertite™ Series plug fits hazardous location FSQC receptacles
