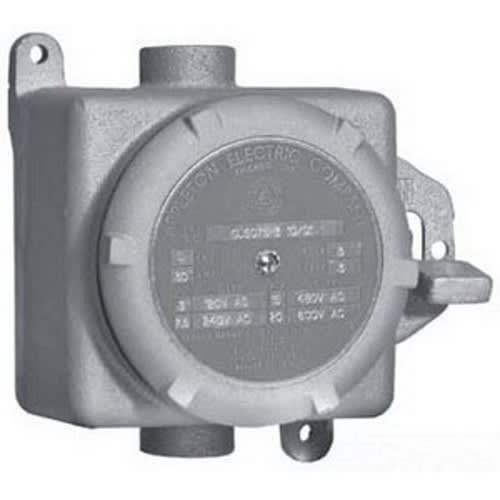

Appleton Electric - Appleton GUSC75-2 TUMBLER SWITCH UNILET-
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381452656
Amperage - 30 Amp
Applications - For Controlling Motors And Other Apparatus
Catalog Number - GUSC75-2
ERP_productname - APP GUSC75-2 TUMBLER SWITCH UNILET-2 POLE
Packaging
1 ea
EAN
00781381452656
Part #
225975
Catalog #
GUSC75-2
Commercial reference
GUSC75-2
12-Digit UPC:
781381452656
Amperage:
30 Amp
Applications:
For Controlling Motors And Other Apparatus
Catalog Number:
GUSC75-2
ERP_productname:
APP GUSC75-2 TUMBLER SWITCH UNILET-2 POLE
Enclosure:
NEMA 7D, 9EFG
Family Brand Name:
Appleton
Number of Poles:
2 Pole
Sub Brand:
UNILETS
Type:
GUSC Series Heavy-Duty Tumbler Switch
Voltage:
600 VAC
SoneparProductId:
SKU_US_72433318
UNILETS GUSC Series Heavy-Duty Tumbler Switch, Voltage Rating: 600 VAC, Amperage Rating: 30 AMP, Number Of Poles: 2, Enclosure: NEMA 7D, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, HP Rating: 3 HP At 240 VAC, 7-1/2 HP At 480 VAC, 10 HP At 600 VAC, Material: Malleable Iron Body, Copperfree Aluminum Cover, Finish: Body: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Cover: Natural, Height: 4.63 IN, Width: 4.19 IN, Depth: 3.94 IN, Standard: Class I, Division 1 And 2, Group D, Class II, Division 1 And 2, Groups E, F, G , Class III, For Controlling Motors And Other Apparatus
