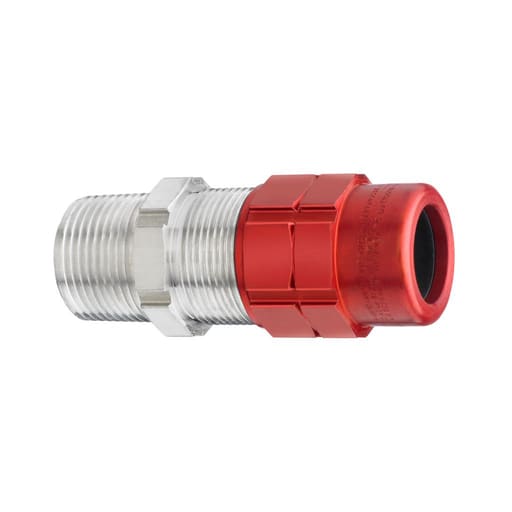

Appleton Electric - Appleton TMC2X-075099AX TMC2X CBL GLND A

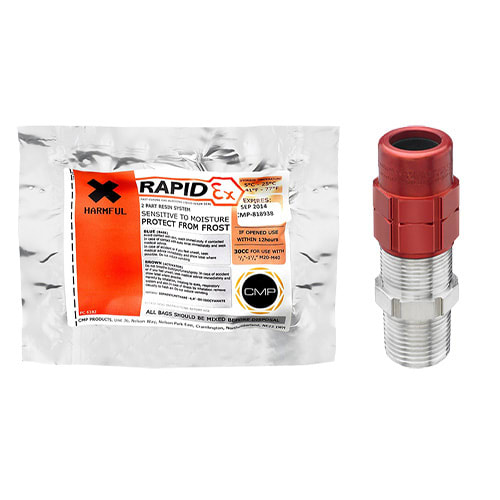

Appleton™ TMC2X Connectors are designed for use with MC/MC-HL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK) cables. They utilize RapidEx high speed liquid resin sealing compound. TMC2X connectors are used to provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor. Features: Utilizes RapidEx high speed liquid resin sealing compound included with each gland; For use on horizontal or vertical runs; Simplified two piece design; Independent sealing and armor clamping/ grounding; True 360± grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Widest cable acceptance range; Disconnectable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Continuous operating temperature: -60 ±C to +85 ±C (-76 ±F to +185 ±F)
