Appleton Electric - Appleton WSRD63542SQ NEMA12 60A RCPT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781381756877
Catalog Number - WSRD63542SQ
ERP_productname - APP WSRD63542SQ RCPT NEMA12 60A
Family Brand Name - Emerson Electric Co.
SoneparProductId - SKU_US_197923472
Packaging
1 ea
EAN
00781381756877
Part #
154182
Catalog #
WSRD63542SQ
Commercial reference
WSRD63542SQ
12-Digit UPC:
781381756877
Catalog Number:
WSRD63542SQ
ERP_productname:
APP WSRD63542SQ RCPT NEMA12 60A
Family Brand Name:
Emerson Electric Co.
SoneparProductId:
SKU_US_197923472

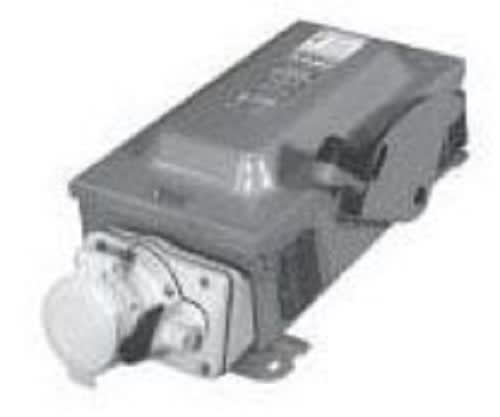

Interlocked Receptacle and Disconnect Switch, Type Interlocked, Constructional Feature Corrosion Resistant, Raintight, Watertight, Voltage Rating 600 VAC at 50/60 Hz, 250 VDC, Current Rating 60 Ampere, Number of Poles 4, Number of Wires 3, Door Type Removable Hinged, Padlockable Cover, Fuse Provision Non-Fusible, Hub Type 1-1/2 Inch, Grounding Style 2, Shell, Extra Pole, Material Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Enamel Coated Sheet Metal (Enclosure), Enclosure NEMA 3R/12, Wire Size 6 to 2 AWG, Power Rating 60 Hp at 600 VAC, Excludes Viewing Window, Approval UL 98/50E/1682/1686, CSA C22.2, Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock, Industrial Plant
