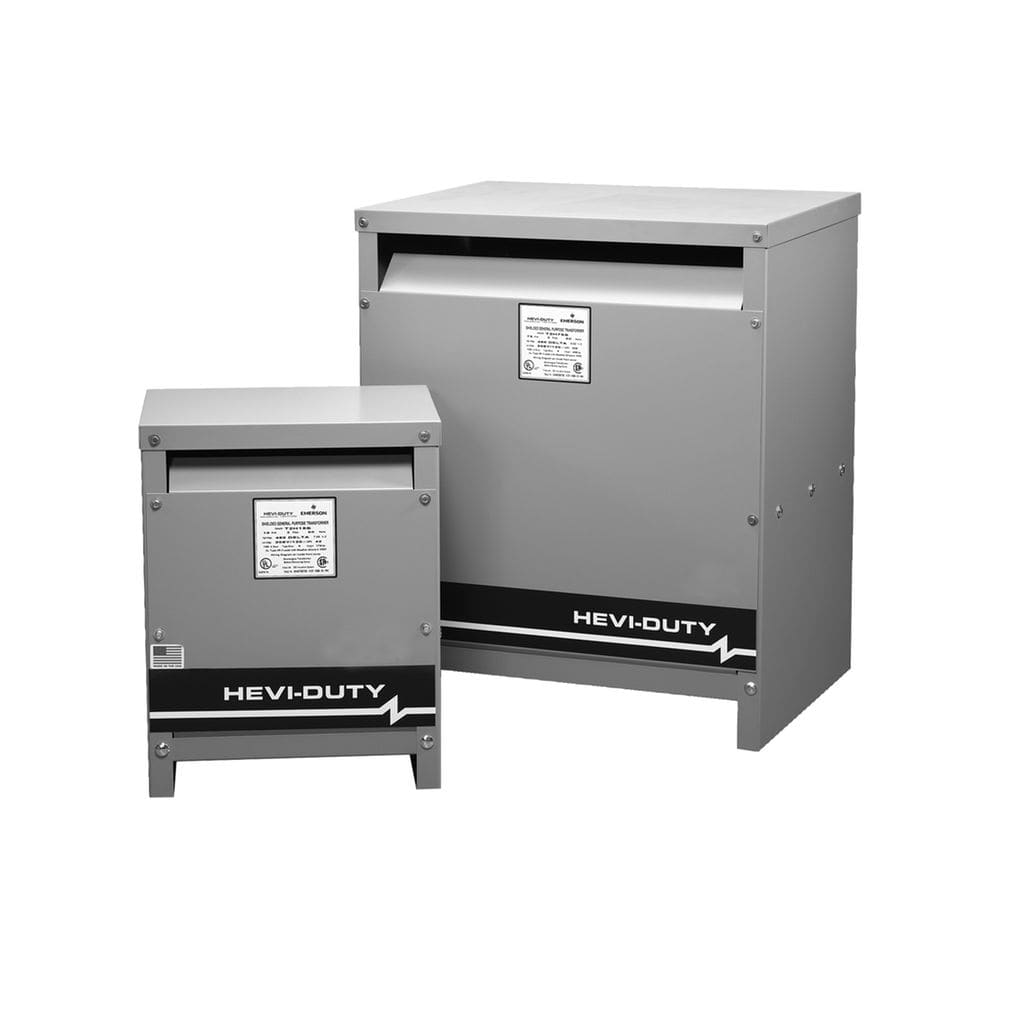

Appleton Electric - SHD ES5H15S 15KVA 240X480-120/240 1

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783472000203

  • Applications - Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.

  • Buy American - Y

  • Catalog Number - ES5H15S

  • ERP_productname - HEVI ES5H15S 15KVA TRANSFORMER

Packaging

  • 1 ea

EAN

00783472000203

Part #

164352

Catalog #

ES5H15S

Commercial reference

ES5H15S

12-Digit UPC:

783472000203

Applications:

Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.

Buy American:

Y

Catalog Number:

ES5H15S

ERP_productname:

HEVI ES5H15S 15KVA TRANSFORMER

Enclosure:

NEMA 3R with optional weather shield (WS-10)

Family Brand Name:

SolaHD

Heights:

28 Inch

Length:

21 Inch

Number of Phases:

1 Phase

Primary Voltage:

480 V

Secondary Voltage:

208/120 VAC

Type:

Ventilated Distribution Transformer

Widths:

33 in

SoneparProductId:

SKU_US_89430873

General Purpose 600 Volt Class transformers feature dry type construction and are classified as isolation transformers. These step up or step down transformers are available in single- and three phase indoor and outdoor models from 15 kVA through 500 kVA. There is an energy-efficient workhorse to meet virtually any need. Features: UL; Energy Efficient Compliant to DOE 2016; UL Listed/NEMA Type 3R ventilated outdoor enclosures when used with optional weather shields (order separately); UL Class +220±C insulation system, +150±C temperature rise under full load; Terminal board connections and spacious wiring compartment; Panel enclosure design reduces labor time. Wiring diagram on inside front cover; High efficiency for low cost operation; Single and three phase availability; Fast delivery
