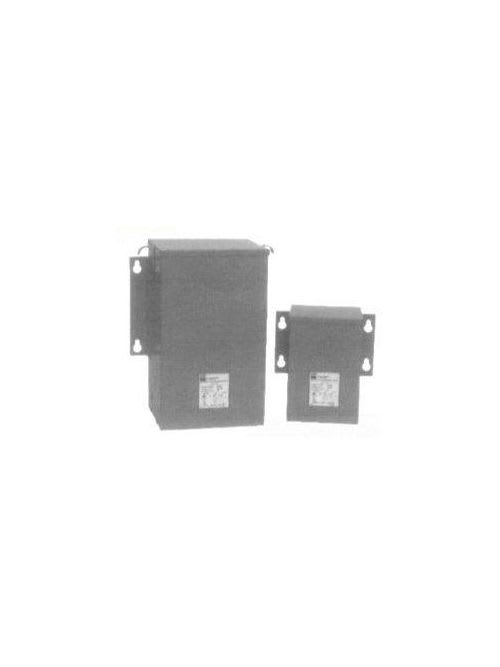

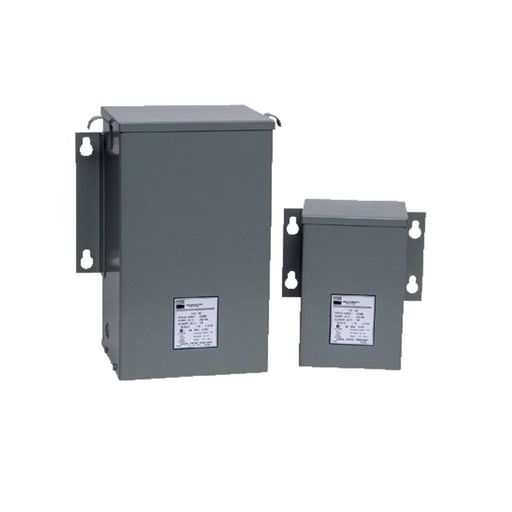

Appleton Electric - SHD HZ2000 2KVA 240X480-120

HZ Series industrial control transformers are designed for applications where cost or heat issues make mounting the transformer outside the control panel necessary. This encapsulated transformer has copper windings for industrial applications. The UL Class +180.C insulation system allows for a +80.C temperature rise under full load. Standard models are UL Listed/NEMA Type 3R (rain proof); however custom models are available for UL Listed/NEMA Type 4, 4X and 12 requirements. Features: cULus, RoHS; UL Class +180±C insulation system; +80±C temperature rise under full load; Encapsulated housing with copper windings; Two case styles available: UL-3R (Design Style 1) and NEMA-4, 4X, 12 (Design Style 2); UL Listed/NEMA Type 3R (rain proof); Optional: UL Listed/NEMA Type 4 (wash down & dust proof); Optional: UL Listed/NEMA Type 4X (corrosion proof); Optional: UL Listed/NEMA Type 12 (dust proof)
