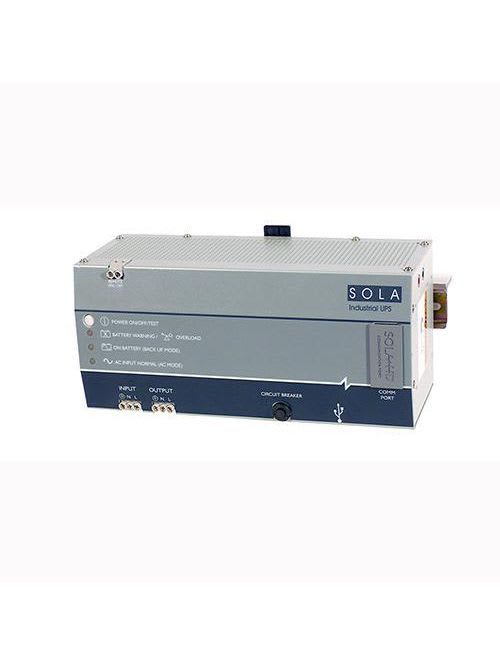

Appleton Electric - SHD SDU850A OFFLINE UPS 850VA 120V

Essential specifications

12-Digit UPC - 783472874712
Amperage - 850 VA
Applications - For Industrial Use
Battery Type - Sealed, Non-Spillable, Maintenance-Free, Lead Acid
Catalog Number - SDU850A

Packaging

1 ea

EAN

00783472874712

Part #

262919

Catalog #

SDU850A

Commercial reference

SDU850A

12-Digit UPC:

783472874712

Amperage:

850 VA

Applications:

For Industrial Use

Battery Type:

Sealed, Non-Spillable, Maintenance-Free, Lead Acid

Catalog Number:

SDU850A

ERP_productname:

HEVI SDU850A OFFLINE UPS 850VA 120V DIN A-SERIES

Enclosure:

IP20

Family Brand Name:

Emerson Electric Co.

Heights:

4.81 Inch

Length:

4.87 Inch

Mounting Type:

DIN Rail

Number of Phases:

1 Phase

Sub Brand:

SolaHD™

Voltage:

120 VAC

Wattage:

510 Watt

Widths:

11.1 in

SoneparProductId:

SKU_US_29563489

The SDU AC - A Series DIN Rail UPS System combines an industry leading compact design with a wide operation temperature range, enhanced communications and unique installation options. The SDU-A Series provides economical protection from damaging impulses and power interruptions. These units include easy to wire screw terminations for critical devices needing battery back-up such as computer based control systems. Features: cRUus, CE, RoHS Compliant, Federal Comminucations Commission, ODVA Compliant; Lightweight, compact industrial design; Communications port for optional Industrial Ethernet protocols or discrete communication cards; USB communication port; Wide operation temperature range and cold start capability; Remote turn-on and shut-off capabilities; Simulated sinewave output; Software and cable included for easy installation; Panel/wall mounting brackets (optional)
