Appleton Electric - SHD STFV150-24L ACT TRC FLTR PLUS 1

CopyCopy
Appleton Electric - SHD STFV150-24L ACT TRC FLTR PLUS 1

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783472700400

  • Applications - Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment

  • Catalog Number - STFV150-24L

  • ERP_productname - HEVI STFV150-24L ACT TRC FLTR PLUS 15A 240V 1PH

  • Enclosure - High Impact Plastic Case

Packaging

  • 1 ea

EAN

00783472700400

Part #

195270

Catalog #

STFV150-24L

Commercial reference

STFV150-24L

12-Digit UPC:

783472700400

Applications:

Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment

Catalog Number:

STFV150-24L

ERP_productname:

HEVI STFV150-24L ACT TRC FLTR PLUS 15A 240V 1PH

Enclosure:

High Impact Plastic Case

Family Brand Name:

SolaHD

Heights:

2.35 Inch

Length:

6-1/4 Inch

Type:

STFV Plus Series -Active Tracking Filters with Surge Protection

Widths:

4.75 in

SoneparProductId:

SKU_US_73762756

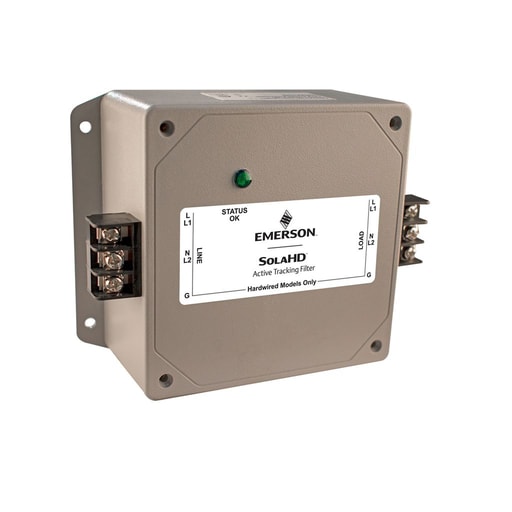

STFV Plus Series combines sinewave tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation. Features: cULus, RoHS; Non degrading, series filter/SPD technology for total durability; UL surge current capacity: 13,000 amps; High impact plastic case, epoxy encapsulated enclosure; Transient protection in all modes (L-N, L-G, and N-G); Single phase applications up to 30 amp; Operating temperature from -40±C to +60±C; Hardwired connection; LED power indication
