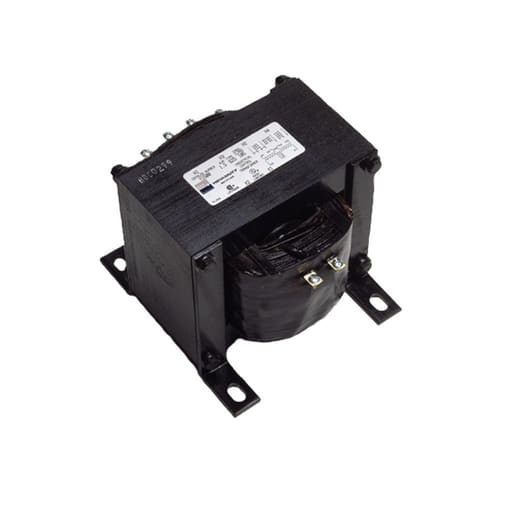

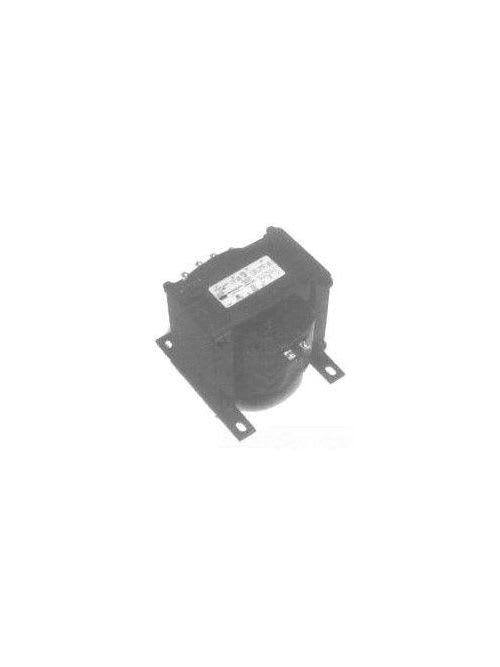

Appleton Electric - SHD Y5000 5KVA 240X480-120 CU

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783472561797

  • Applications - Computers/Printers, Telephone/FAX systems, POS Terminals, Security Systems, LAN Networks, Laboratory Equipment

  • Buy American - Y

  • Catalog Number - Y5000

  • ERP_productname - HEVI Y5000 5KVA 240X480-120 CU

Packaging

  • 1 ea

EAN

00783472561797

Part #

112953

Catalog #

Y5000

Commercial reference

Y5000

12-Digit UPC:

783472561797

Applications:

Computers/Printers, Telephone/FAX systems, POS Terminals, Security Systems, LAN Networks, Laboratory Equipment

Buy American:

Y

Catalog Number:

Y5000

ERP_productname:

HEVI Y5000 5KVA 240X480-120 CU

Family Brand Name:

Emerson Electric Co.

Heights:

11 Inch

Length:

17 Inch

Number of Phases:

1 Phase

Primary Voltage:

240 X 480 Volt Primary

Secondary Voltage:

120 Volt Secondary 60 Hz

Type:

Hardwired

Wattage:

5000 Watt

Widths:

11 in

SoneparProductId:

SKU_US_72427029

SBE Copper Wound Open Style Design Transformers with interleaved copper windings reduce I.R losses and maximize efficiency. They meet or exceed the electrical requirements of NEMA, ANSI, NMTBA and JIC. These higher power capacity transformers provide voltage regulation in excess of NEMA recommendations without exceeding +55.C rise. Features: UL, CSA, RoHS; Interleaved copper windings reduce I²R losses and maximize efficiency; Ratings 60 Hz unless noted 50/60 Hz; Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC; +55±C rise; +105±C insulation system; High quality silicon steel core
