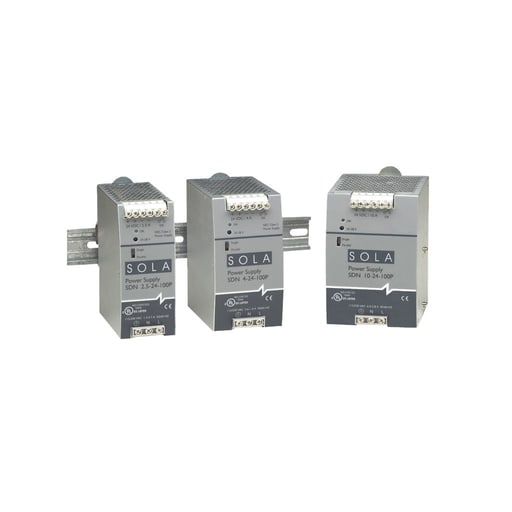

Appleton Electric - Sola Hevi-Duty SDN5-24-100P DIN Rail Power Supply. Output: 24Vdc, 5A (120W)

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783472153190
Amperage - 700m/1.3 Amp
Applications - For Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment
Catalog Number - SDN524100P
ERP_productname - HEVI SDN-5-24-100P 120W 24V DIN P/S 115/230V IN
Packaging
1 ea
EAN
00783472153190
Part #
108839
Catalog #
SDN-5-24-100P
Commercial reference
SDN-5-24-100P
12-Digit UPC:
783472153190
Amperage:
700m/1.3 Amp
Applications:
For Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment
Catalog Number:
SDN524100P
ERP_productname:
HEVI SDN-5-24-100P 120W 24V DIN P/S 115/230V IN
Enclosure:
Unilock Hazardous Location Enclosure,Type 3R- 7-9,Class I,Groups C and D, Class II, Groups E, F and G, Divisions 1 and 2
Family Brand Name:
Emerson Electric Co.
Heights:
4.88 Inch
Input Voltage:
85 - 264 VAC at 50/60 Hz, 115/230 VAC, 210 - 375 VDC
Length:
4.55 Inch
Material:
Metal
Mounting Type:
DIN Rail
NEMA:
IP20
Number of Phases:
1 Phase
Output Voltage:
22.5 V, 24 V
Sub Brand:
SolaHD™
Type:
Internally Fused
Voltage:
115/230 VAC
Wattage:
8.6 Watt
Widths:
1.97 in
SoneparProductId:
SKU_US_25755291
