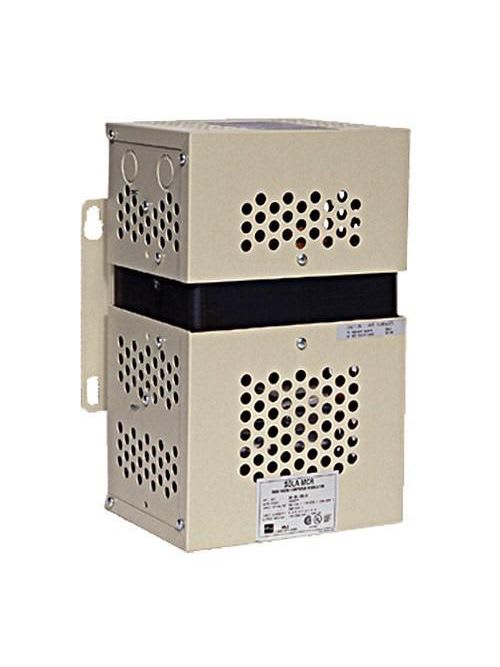

Appleton Electric - SolaHD 63-23-175-8 750 VA 480 Volt Input 120/240 Volt Output 1-Phase Constant Voltage Power Conditioner

Essential specifications

12-Digit UPC - 783472561612
Applications - Computers/Printers, Telephone/FAX systems, POS Terminals, Security Systems, LAN Networks, Laboratory Equipment
Buy American - Y
Catalog Number - 63231758
ERP_productname - HEVI 63-23-175-8 750VA MCR HARDWIRE REGULATOR

Packaging

1 ea

EAN

00783472561612

Part #

284034

Catalog #

63-23-175-8

Commercial reference

63-23-175-8

12-Digit UPC:

783472561612

Applications:

Computers/Printers, Telephone/FAX systems, POS Terminals, Security Systems, LAN Networks, Laboratory Equipment

Buy American:

Catalog Number:

63231758

ERP_productname:

HEVI 63-23-175-8 750VA MCR HARDWIRE REGULATOR

Family Brand Name:

Emerson Electric Co.

Heights:

9 Inch

Input Voltage:

120/208/240/480 VAC at 60 Hz

Length:

16 Inch

Mounting Type:

Bracket

Number of Phases:

1 Phase

Output Voltage:

120 VAC

Sub Brand:

SolaHD™

Type:

Hardwired

Widths:

9 in

SoneparProductId:

SKU_US_28358989

MCR Hardwired Series Power Line Conditioning with Voltage Regulation provides excellent noise filtering and surge protection to safeguard connected equipment against damage, degradation or malfunction. This protection, combined with the excellent voltage regulation, can significantly increase the MTBF of protected equipment. The MCR is a perfect choice where dirty power caused by impulses, swell, sags, brownouts or waveform distortion can lead to costly downtime due to damaged equipment. Features: cULus, CSA, RoHS; .3% output voltage regulation; Noise attenuation: 120 dB in common mode and 60 dB in transverse mode; Surge protection tested to ANSI/IEEE C62.41 Class A & B Waveform: <10 V let through typical; Acts as a step-up or step-down transformer; Harmonic filtering; Hardwired; Galvanic isolation provides exceptional circuit protection; 25 year typical MTBF. No maintenance required
