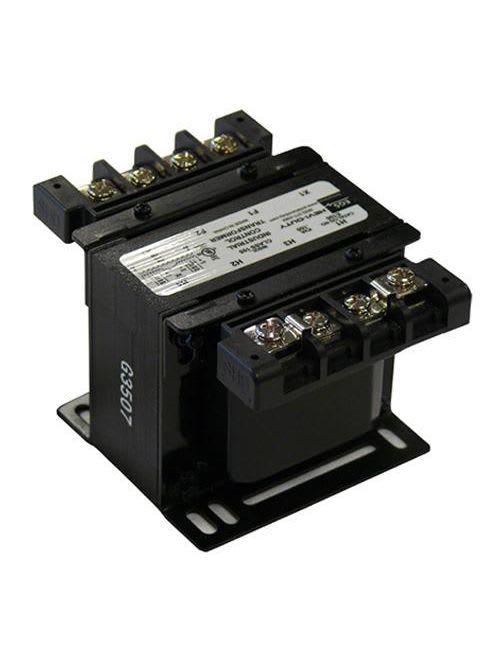

Appleton Electric - SolaHD E250JL 250 VA 277 VAC Primary 120/24 VAC Secondary Encapsulated Industrial Control Transformer

SBE Series encapsulated copper wound industrial control transformers are epoxy encapsulated to protect cores and coils against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. With rugged construction and proven reliability, the SBE design is uniquely suited for industrial environments. Features: cULus, RoHS; Interleaved copper windings reduce I2R losses and maximize efficiency; +55±C rise. +105±C insulation system to minimize heat; Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Comes with heavy gauge steel mounting plate; Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability; Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity; Mounting dimensions are compatible with similar control transformers; Secondary fuse holders (FB2X) included for 13/32\" x 1-1/2\" cartridges (fuses not included). Factory installed fuse holders are available (see WA and WB options)
