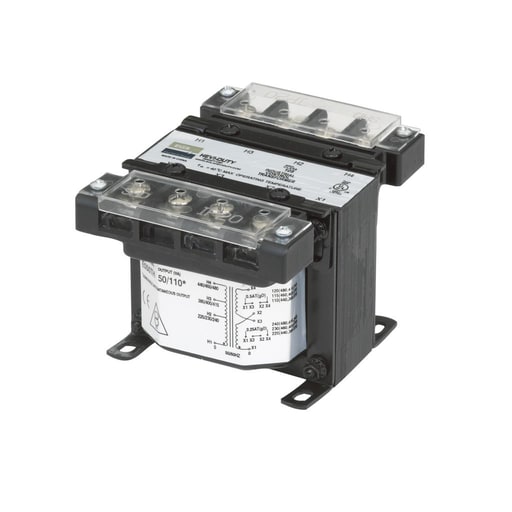

Appleton Electric - SolaHD E250TF 250 VA 600 VAC Primary 120 VAC Secondary Industrial Control Transformer
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783472002139
Applications - Industrial
Catalog Number - E250TF
ERP_productname - HEVI E250TF .225KVA TFMR
Enclosure - IP20
Packaging
1 ea
EAN
00783472002139
Part #
198841
Catalog #
E250TF
Commercial reference
E250TF
12-Digit UPC:
783472002139
Applications:
Industrial
Catalog Number:
E250TF
ERP_productname:
HEVI E250TF .225KVA TFMR
Enclosure:
IP20
Family Brand Name:
Emerson Electric Co.
Heights:
3.89 Inch
Length:
5.21 Inch
Mounting Type:
Heavy Gauge Steel Mounting Plate
Number of Phases:
1 Phase
Primary Voltage:
208/240/415/480/600 V
Secondary Voltage:
120 V
Sub Brand:
SolaHD™
Type:
International Series Control: 50-750 VA.
Wattage:
150 VA
Widths:
4.5 in
SoneparProductId:
SKU_US_26560630
Electromagnetic control components demand inrush currents up to 10 times the transformer's nominal rating without sacrificing secondary voltage stability beyond practical limits. International Series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20). Features: cULus, CE, RoHS; Epoxy encapsulated for cooler operation; Interleaved copper windings to reduce impedance; 50/60 Hz +55±C Rise; +105±C insulation system for harsh, heavy duty applications; Exceeds IEC, NEMA, ANSI, NMTBA, JIC and automotive standards
