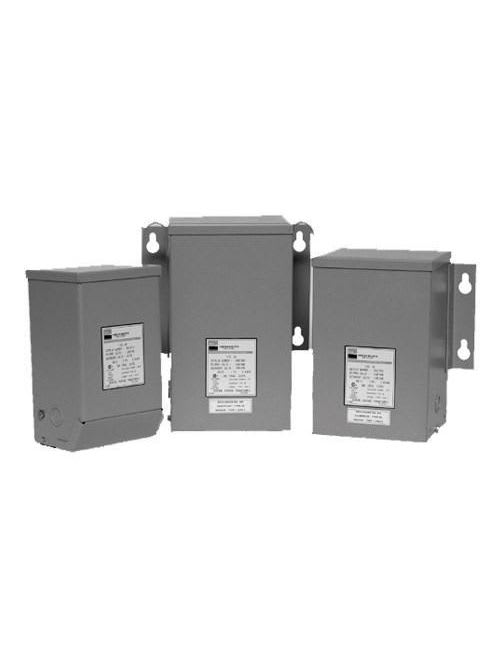

Appleton Electric - SolaHD HSS1F2AS 2 kVa 240 x 480 VAC Primary 120/240 VAC Secondary 1-Phase Non-Ventilated Automation Transformer

Automation Transformers are non-ventilated, 50 VA to 45 kVA encapsulated transformers rated for use in hazardous locations as well as harsh industrial environments. Encapsulation and rugged NEMA 3R enclosures protect the transformer from dust and moisture while providing extra shock and vibration resistance. UL Listed transformers fully comply with the latest edition of the National Electrical Code for Class I, Division 2, Group A-D locations when installed in compliance with NEC 501.100(B). Features: cULus; Copper lead wire terminations. Conduit knockouts for side entry into wiring compartment; UL Listed/NEMA Type 3R enclosure for indoor and outdoor service; Single Phase, non encapsulated, .05 - .250 kVA.: Low temperature rise, UL Class 130±C insulation system, 80±C temperature rise under full load; Single Phase, encapsulated, 0.500 - 25 kVA and Three Phase, encapsulated, 3 - 45 kVA.: Electrostatically shielded for quality power on sizes 1 kVA and larger. UL Class 200±C insulation system, 115±C temperature rise under full load. .500 - 45 k
